SYNOCARE MEDICAL / PRODUCT RESOURCES

Find the right specification.

Search by model, material or specification. Download the PDF for the exact product you need.

60 products60 PDF specificationsFree access · No registration
Clear filters

Showing 60 of 60 products

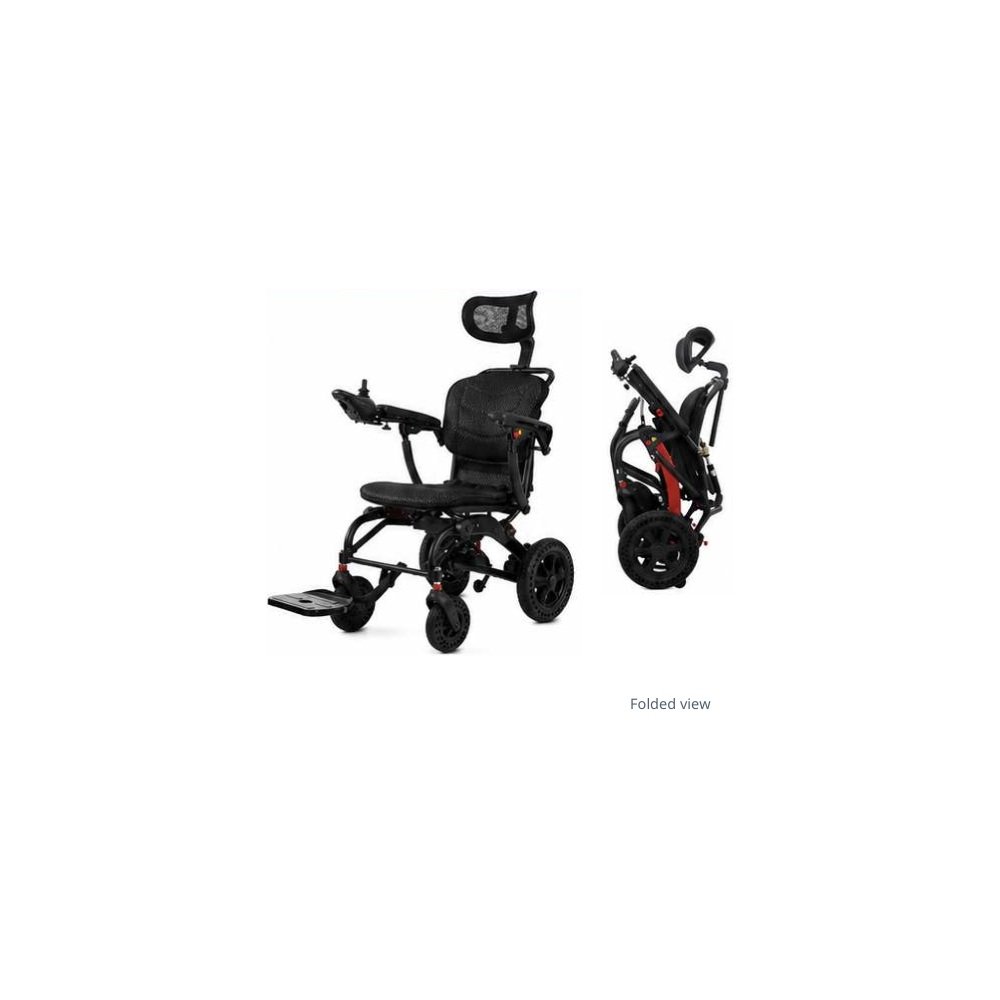

AeroFold 201F Foldable Electric Wheelchair
Electric WheelchairsPDF available

AeroFold 201F

AeroFold 201F Foldable Electric Wheelchair

Net weight
Approx. 13.6 kg
Seat width
420 mm
View specifications
Model
AeroFold 201F
Overall size
86 × 58 × 93 cm
Carton size
58 × 35 × 80 cm
Backrest height
46 cm
Seat depth
40 cm
Seat width
42 cm
Seat height
47 cm
Front wheel
7 in honeycomb
Rear wheel
9 in honeycomb
Net weight
Approx. 13.6 kg
Gross weight
18.4 kg
Download PDF View product →

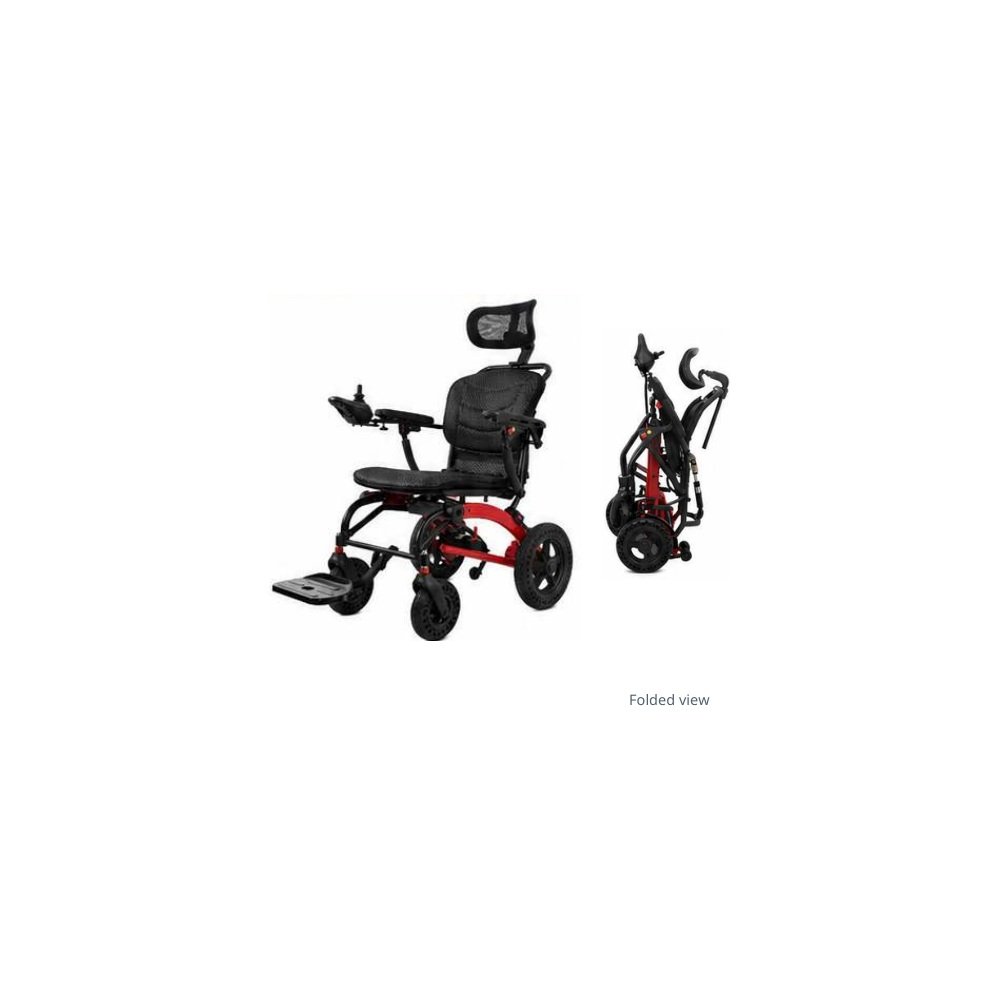

AeroFold 202F Foldable Electric Wheelchair
Electric WheelchairsPDF available

AeroFold 202F

AeroFold 202F Foldable Electric Wheelchair

Net weight
18.5 kg
Seat width
420 mm
View specifications
Model
AeroFold 202F
Overall size
110 × 56 × 91 cm
Inner armrest width
47 cm
Carton size
58 × 40 × 82 cm
Backrest height
50 cm
Seat depth
40 cm
Seat width
42 cm
Seat height
48 cm
Front wheel
8 in solid honeycomb
Rear wheel
12 in solid honeycomb
Net weight
18.5 kg
Gross weight
Approx. 22.5 kg
Download PDF View product →

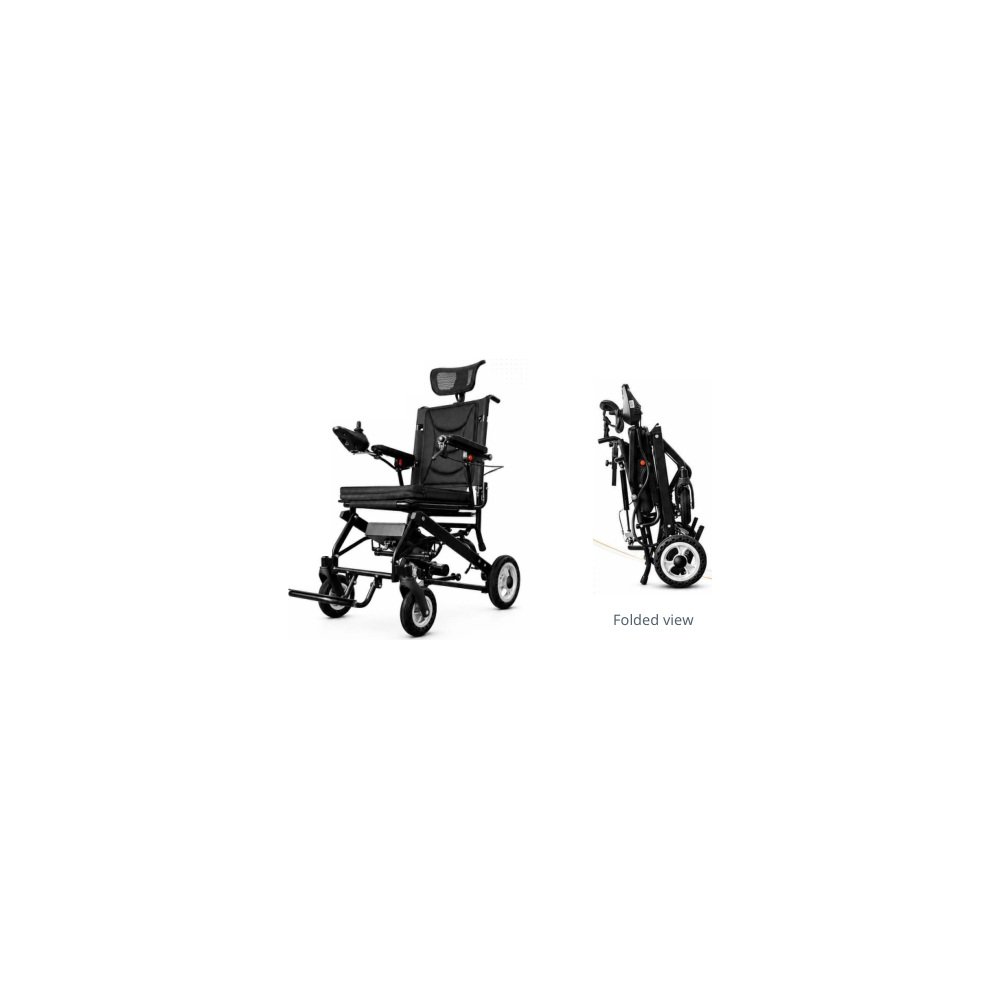

AeroFold 210R Reclining Electric Wheelchair
Electric WheelchairsPDF available

AeroFold 210R

AeroFold 210R Reclining Electric Wheelchair

Net weight
15.7 kg
Seat width
420 mm
View specifications
Model
AeroFold 210R
Frame material
Aluminum alloy
Speed setting
1-6 km/h
Climbing angle
≤8°
Front wheel
7 in honeycomb
Brake
Electronic brake
Drive system
Brush motor 200 W × 2
Endurance mileage
8 / 16 / 30 km
Seat height
540 mm
Seat depth
400 mm
Seat width
420 mm
Controller
360° free control
Seat / back cushion
Thickened anti-adhesive mesh cloth
Charging time
5-10 hours
Rear wheel
9 in honeycomb
Armrest
Flip back
Turning radius
860 mm
Backrest
Curved backrest
Battery
24 V 6 Ah / 10 Ah / 20 Ah lithium
Max. load
100 kg
Unfolded dimensions
1010 × 560 × 1190 mm
Folded dimensions
560 × 400 × 740 mm
Carton dimensions
570 × 420 × 760 mm
Net weight
15.7 kg
Gross weight
19 kg
Download PDF View product →

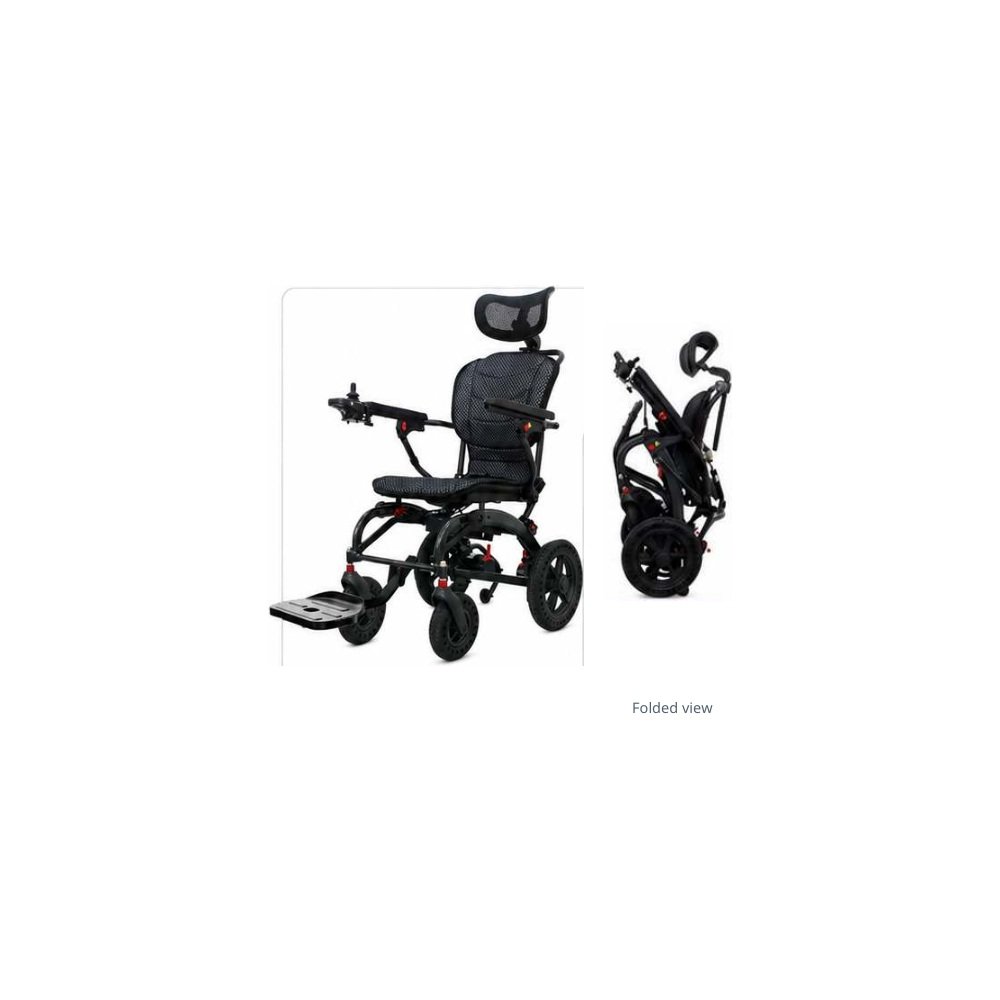

AeroFold 220C Compact Folding Electric Wheelchair
Electric WheelchairsPDF available

AeroFold 220C

AeroFold 220C Compact Folding Electric Wheelchair

Net weight
14.8 kg (without battery)
Seat width
410 mm
View specifications
Model
AeroFold 220C
Overall dimensions
104 × 58 × 86 cm
Carton dimensions
58 × 40 × 82 cm
Backrest height
50 cm
Seat depth
40 cm
Seat width
41 cm
Seat height from ground
47 cm
Front wheel
8 in
Rear wheel
10 in
Net weight
14.8 kg (without battery)
Gross weight
18.9 kg (10 Ah battery)
Download PDF View product →

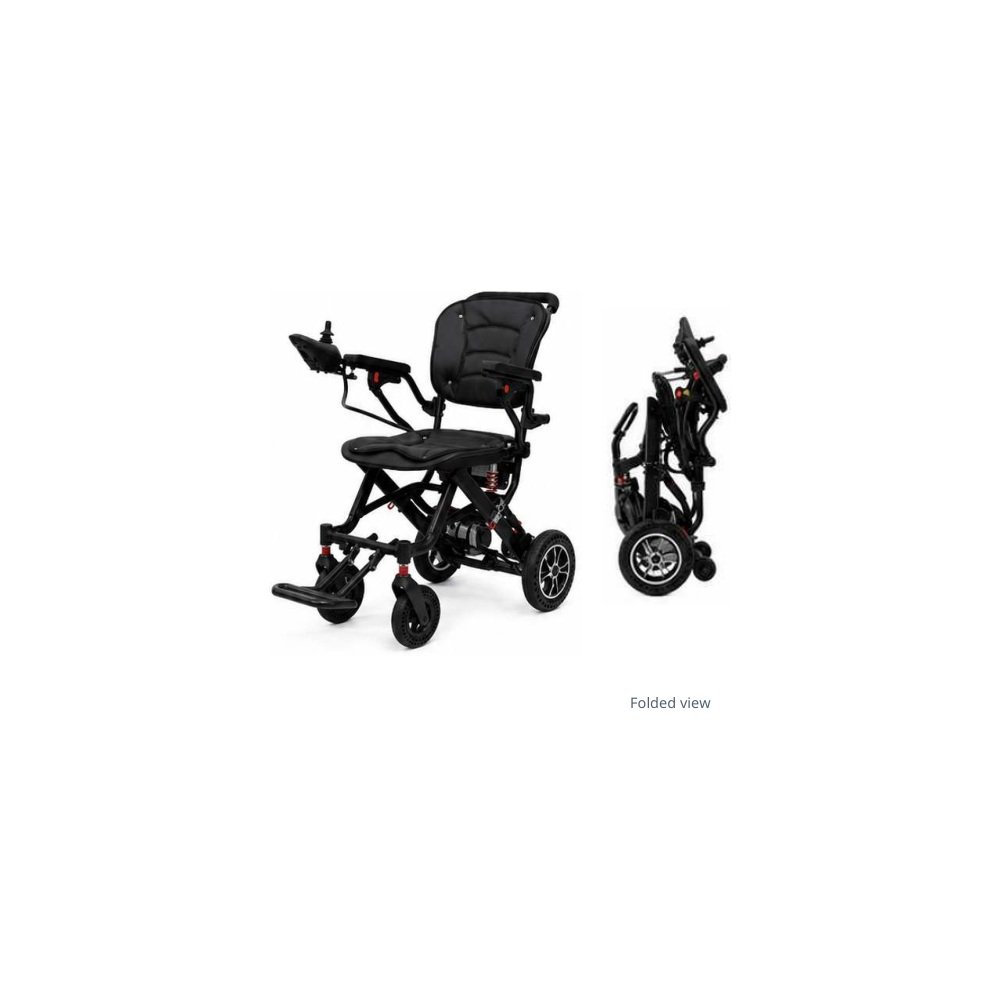

AeroFold 610C Folding Electric Wheelchair
Electric WheelchairsPDF available

AeroFold 610C

AeroFold 610C Folding Electric Wheelchair

Net weight
Approx. 19 kg
Seat width
410 mm
View specifications
Model
AeroFold 610C
Overall length
105 cm
Overall width
59 cm
Overall height
90 cm
Packing size
60.5 × 36 × 80 cm
Backrest height
44 cm
Seat depth
40 cm
Seat width
41 cm
Seat height
48 cm
Front wheel
7 in
Rear wheel
10 in
Net weight
Approx. 19 kg
Gross weight
Approx. 22 kg
Download PDF View product →

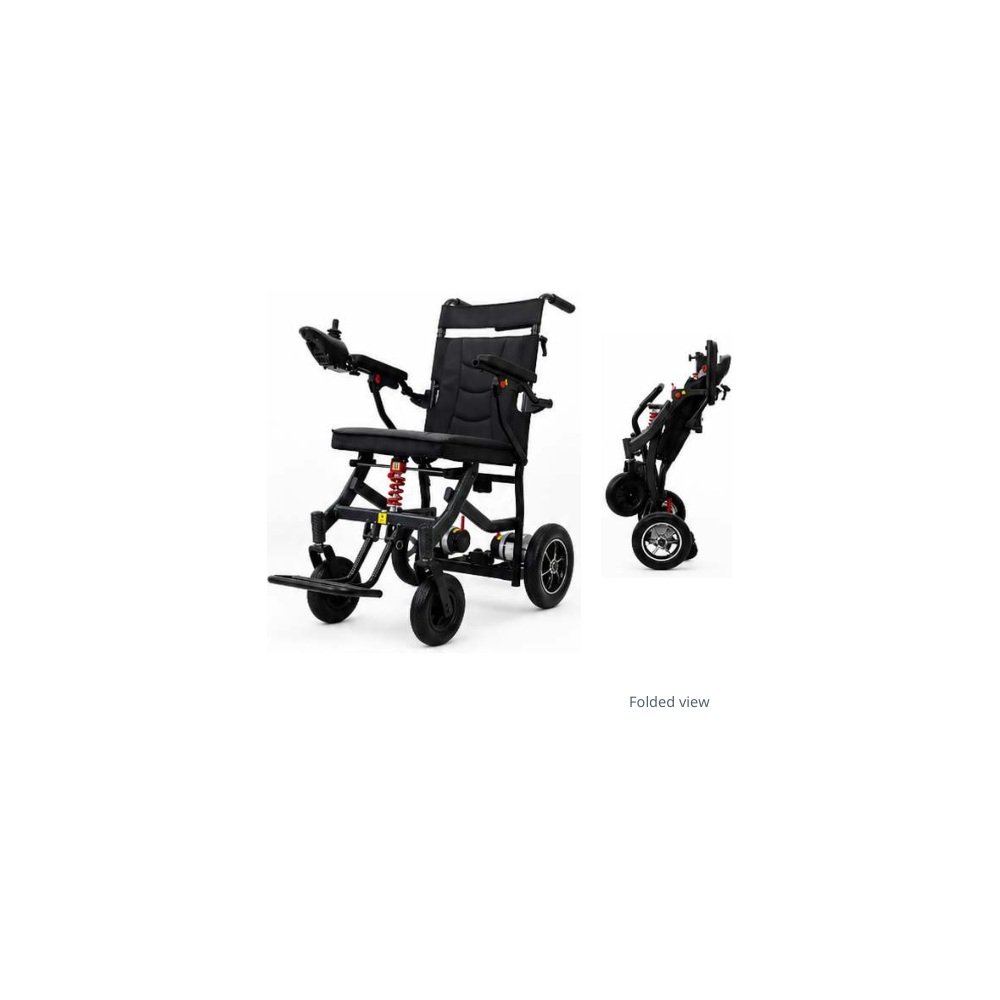

AeroFold 611F Foldable Electric Wheelchair
Electric WheelchairsPDF available

AeroFold 611F

AeroFold 611F Foldable Electric Wheelchair

Net weight
Approx. 20 kg
Seat width
410 mm
View specifications
Model
AeroFold 611F
Overall length
88 cm
Overall width
55 cm
Overall height
91.5 cm
Packing size
54 × 30 × 92 cm
Backrest height
41 cm
Seat depth
41 cm
Seat width
41 cm
Seat height from ground
48 cm
Front wheel
7 in
Rear wheel
10 in
Net weight
Approx. 20 kg
Gross weight
Approx. 22 kg
Download PDF View product →

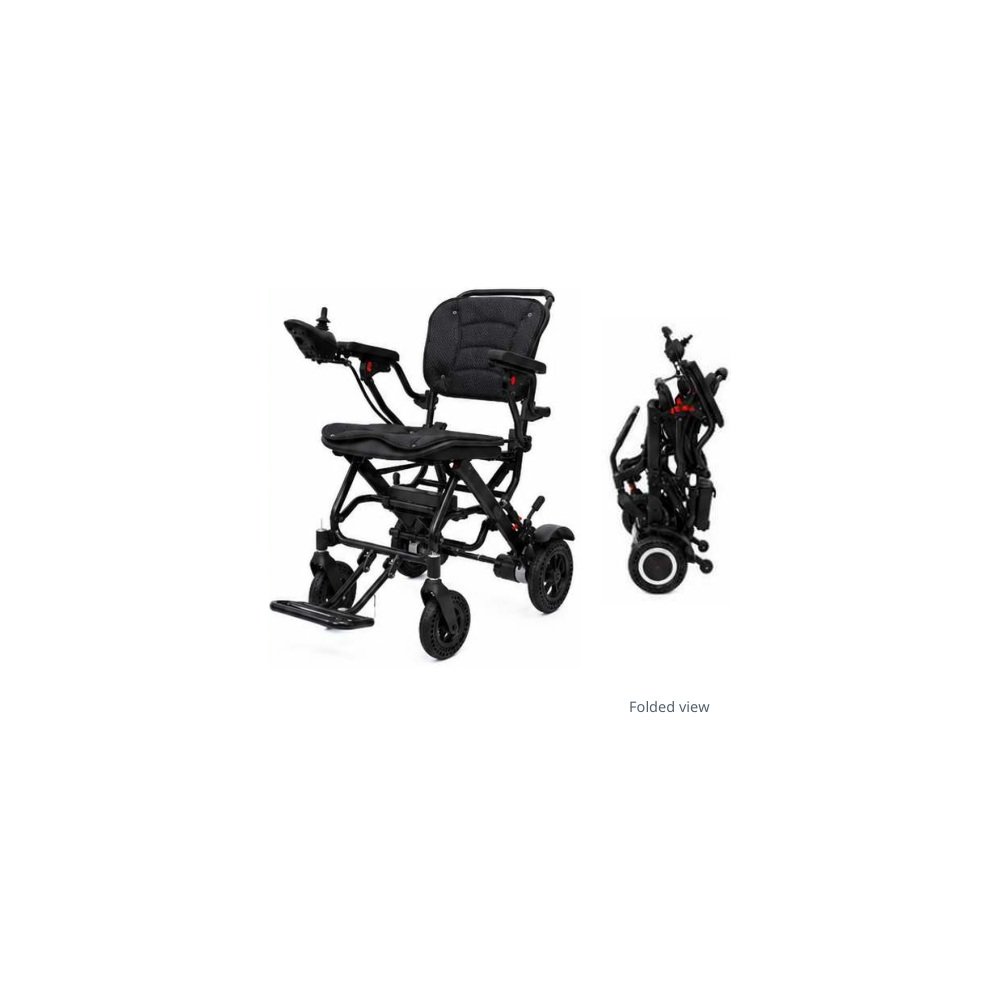

AeroFold 611L Folding Electric Wheelchair
Electric WheelchairsPDF available

AeroFold 611L

AeroFold 611L Folding Electric Wheelchair

Net weight
Approx. 12.9 kg
Seat width
420 mm
View specifications
Model
AeroFold 611L
Overall length
86 cm
Overall width
58 cm
Overall height
93 cm
Packing size
58 × 35 × 80 cm
Backrest height
46 cm
Seat depth
40 cm
Seat width
42 cm
Seat height
47 cm
Front wheel
7 in honeycomb
Rear wheel
9 in honeycomb
Net weight
Approx. 12.9 kg
Gross weight
15.5 kg
Download PDF View product →

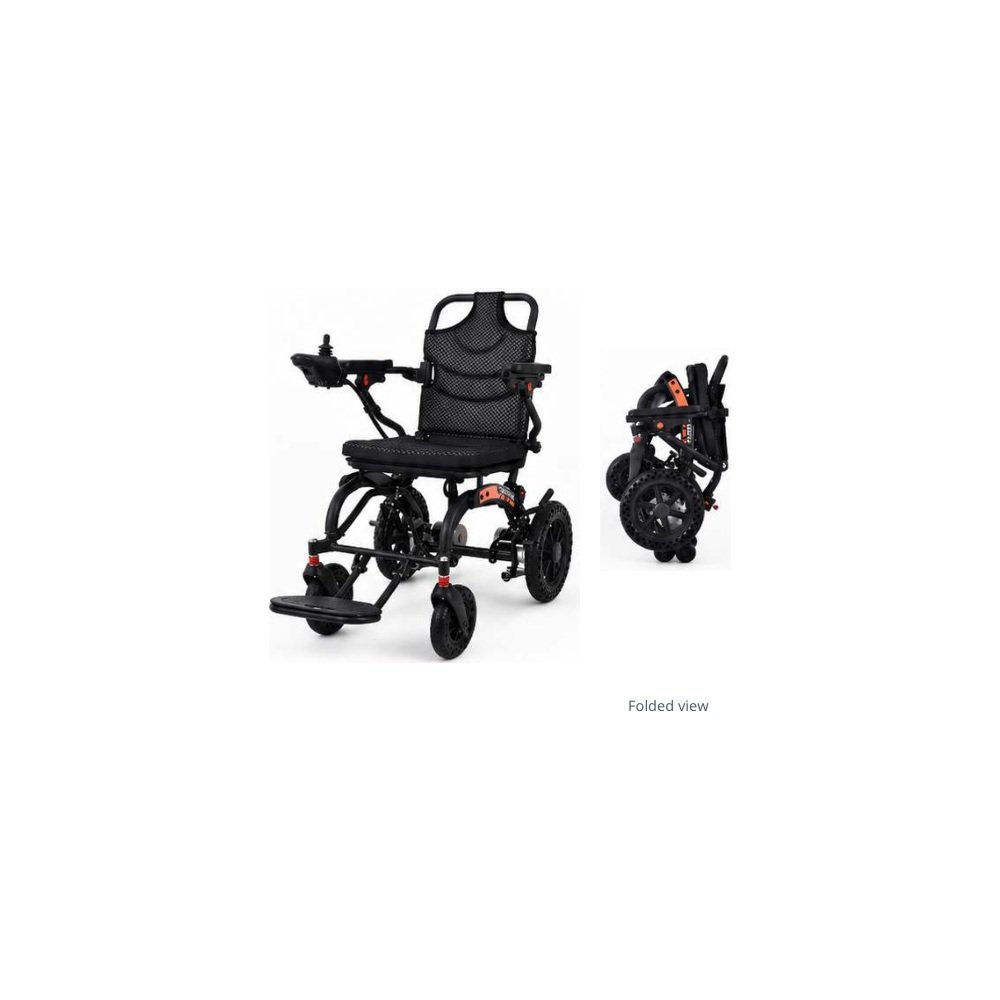

AeroFold 612F Foldable Electric Wheelchair
Electric WheelchairsPDF available

AeroFold 612F

AeroFold 612F Foldable Electric Wheelchair

Net weight
16.5 kg (including front controller)
Seat width
400 mm
View specifications
Model
AeroFold 612F
Overall width
57 cm
Overall height
92 cm
Inner size
57 × 40 × 75 cm
Carton size
59 × 42 × 78 cm
Backrest height
44 cm
Seat depth
39 cm
Seat width
40 cm
Armrest width
46 cm
Seat height from ground
51 cm
Front wheel diameter
7 in semi-honeycomb
Rear wheel diameter
9 in semi-honeycomb
Max. load
120 kg
Folded width
35 cm
Net weight
16.5 kg (including front controller)
Gross weight
20.8 kg
Download PDF View product →

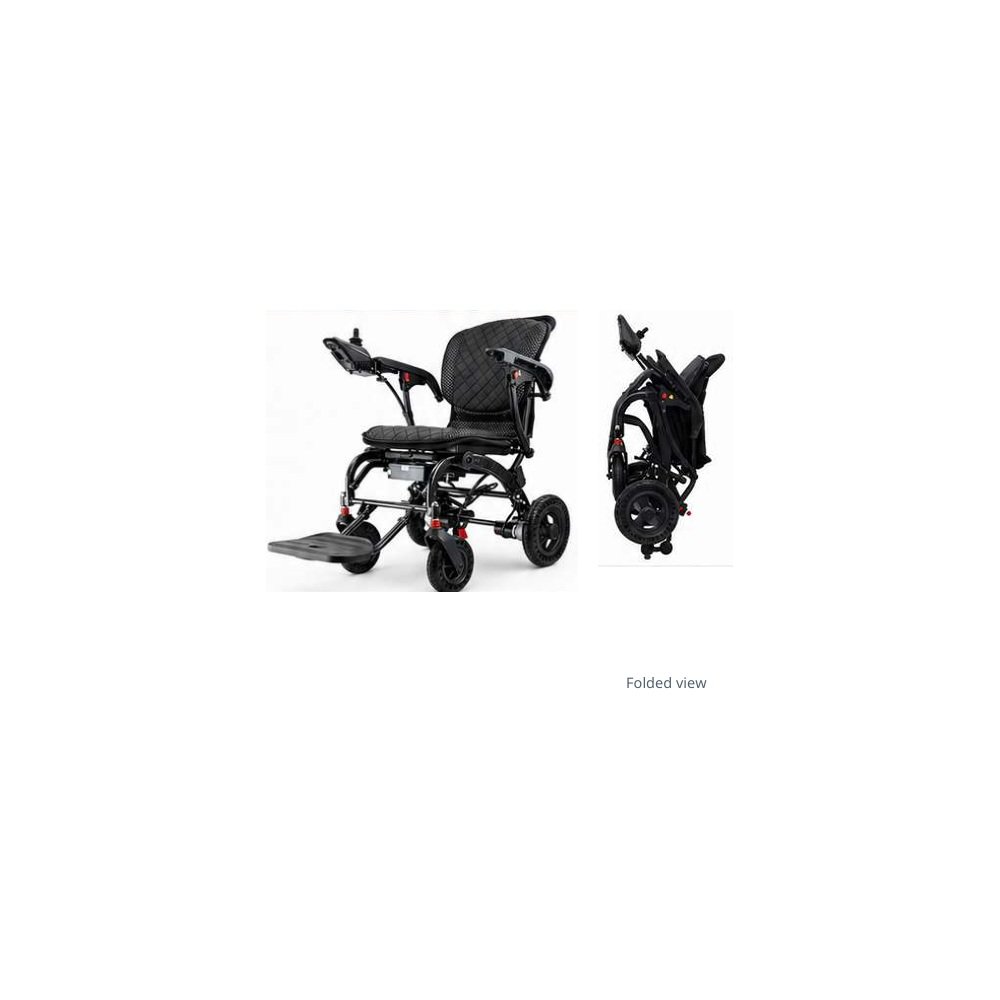

AeroFold 712F Foldable Electric Wheelchair
Electric WheelchairsPDF available

AeroFold 712F

AeroFold 712F Foldable Electric Wheelchair

Net weight
13.8 kg (without battery)
Seat width
410 mm
View specifications
Model
AeroFold 712F
Overall size
104 × 58 × 86 cm
Backrest height
50 cm
Seat depth
40 cm
Seat width
41 cm
Seat height from ground
47 cm
Front wheel
8 in
Rear wheel
10 in
Net weight
13.8 kg (without battery)
Gross weight
17.9 kg (with 10 Ah battery)
Download PDF View product →

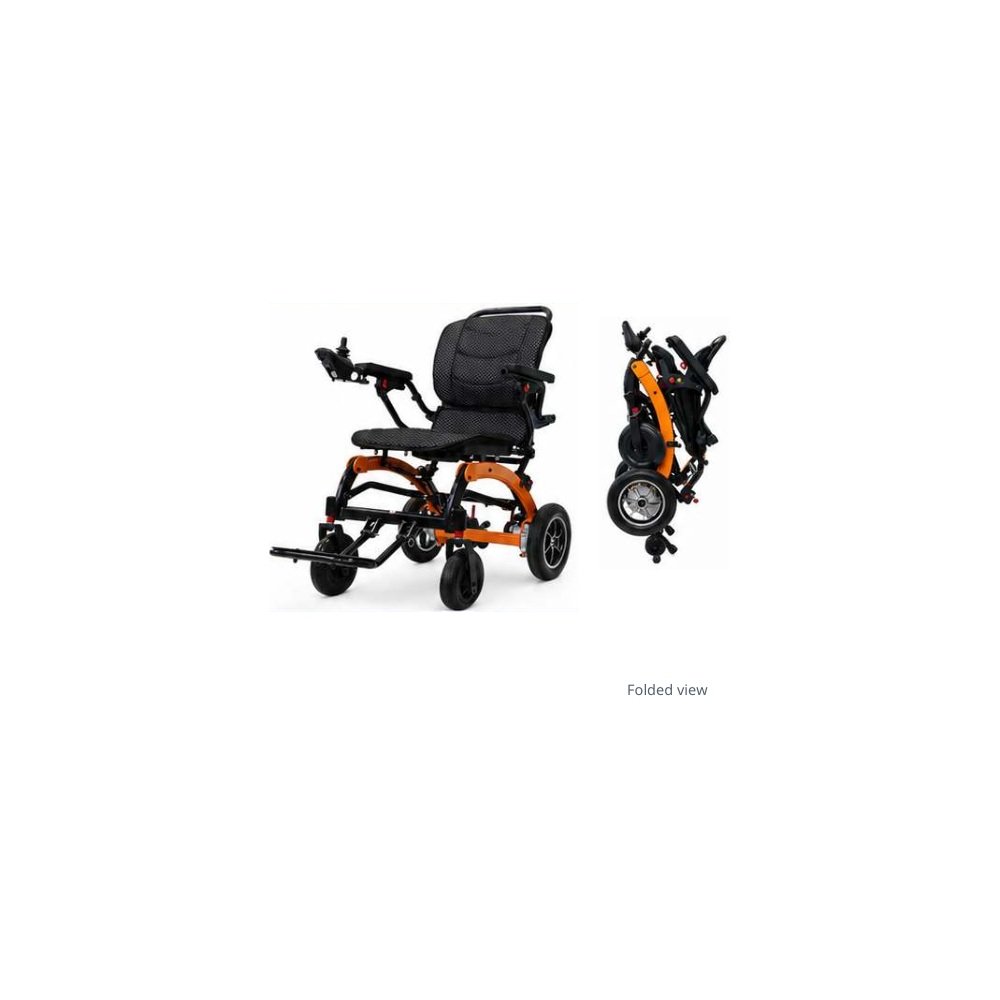

AeroFold 713F Foldable Electric Wheelchair
Electric WheelchairsPDF available

AeroFold 713F

AeroFold 713F Foldable Electric Wheelchair

Net weight
18.5 kg
Seat width
420 mm
View specifications
Model
AeroFold 713F
Overall length
110 cm
Overall width
56 cm
Overall height
91 cm
Armrest inner width
47 cm
Packing size
58 × 40 × 82 cm
Backrest height
50 cm
Seat depth
40 cm
Seat width
42 cm
Seat height from ground
48 cm
Front wheel
8 in PU
Rear wheel
10 in PU
Net weight
18.5 kg
Gross weight
Approx. 22.5 kg
Download PDF View product →

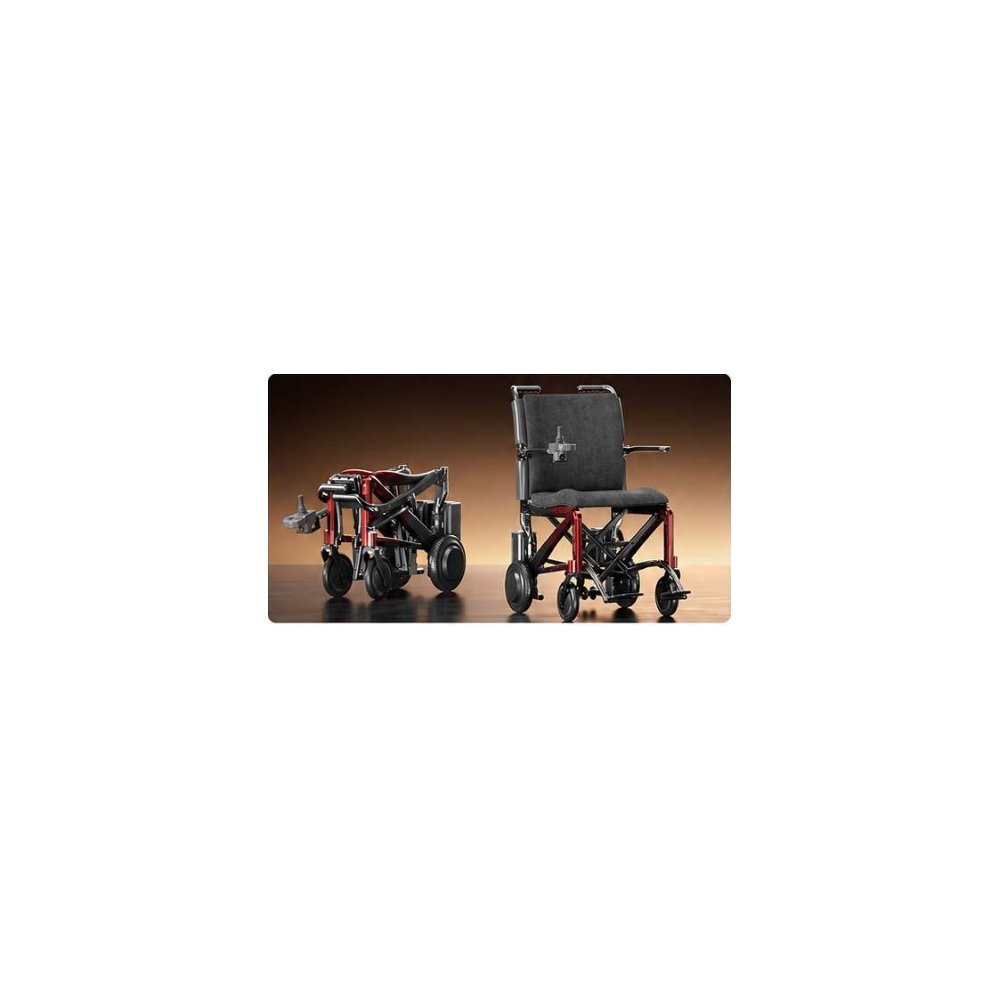

CarbonAir 110F Folding Electric Wheelchair
Electric WheelchairsPDF available

CarbonAir 110F

CarbonAir 110F Folding Electric Wheelchair

Net weight
9.8 kg
Seat width
480 mm
View specifications
Model
CarbonAir 110F
Overall length
49 cm
Overall width
39 cm
Rear wheel
8 in
Front wheel
6 in
Seat width
48 cm
Climbing angle
≤6°
Open size
89 × 49 × 83 cm
Battery
6-16 Ah
Motor
150 W × 2
Folded height
85 cm
Overall height
89 cm
Max. load
100 kg
Net weight
9.8 kg
Carton size
64 × 41 × 51 cm
Download PDF View product →

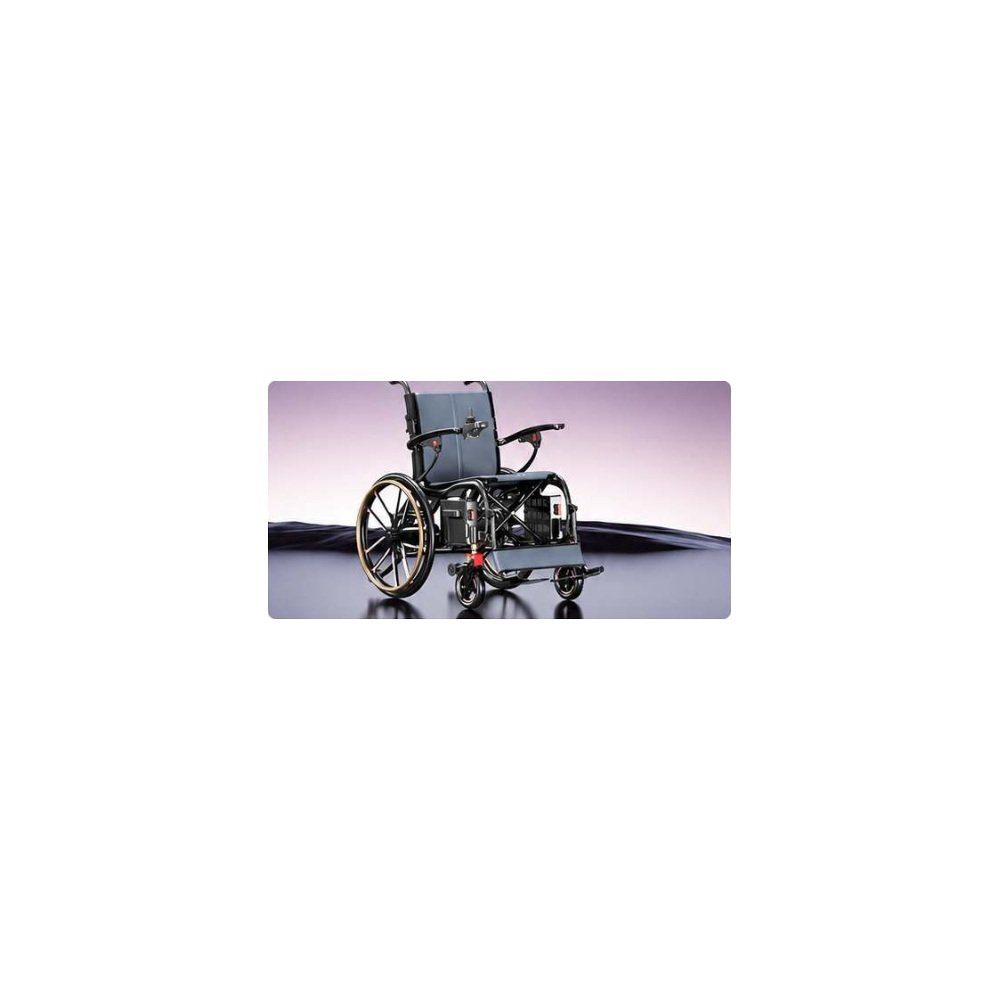

CarbonAir 120S Suspension Electric Wheelchair
Electric WheelchairsPDF available

CarbonAir 120S

CarbonAir 120S Suspension Electric Wheelchair

Net weight
17.6 kg
Seat width
500 mm
View specifications
Model
CarbonAir 120S
Overall length
66 cm
Overall width
40 cm
Rear wheel
20 in
Front wheel
7 in
Seat width
50 cm
Climbing angle
≤6°
Open size
101 × 66 × 87 cm
Battery
6-20 Ah
Motor
250 W × 2
Folded height
87 cm
Overall height
101 cm
Max. load
100 kg
Net weight
17.6 kg
Carton size
87 × 40 × 75 cm
Download PDF View product →

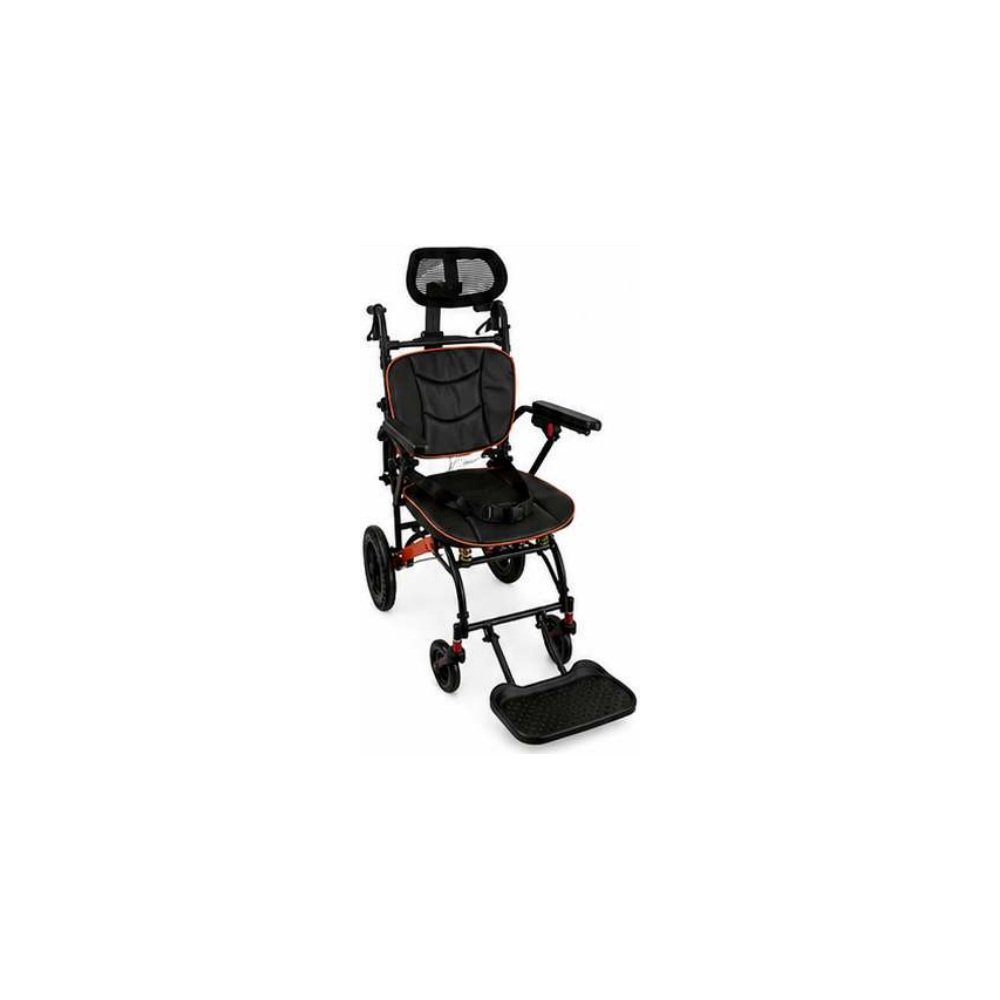

FeatherLite 511H Lightweight Foldable Wheelchair
Manual WheelchairsPDF available

FeatherLite 511H

FeatherLite 511H Lightweight Foldable Wheelchair

Net weight
13.24 kg
Seat width
420 mm
View specifications
Model
FeatherLite 511H
Seat height
530 mm
Seat depth
420 mm
Seat width
420 mm
Front wheel
6 in
Rear wheel
12 in
Push handle height
1000 mm
Armrest height
720 mm
Folded dimensions
540 × 340 × 740 mm
Open dimensions
1240 × 550 × 125 mm
Package dimensions
550 × 350 × 760 mm
Net weight
13.24 kg
Gross weight
14.86 kg
Headrest height
250 mm
Backrest angle
35°
Download PDF View product →

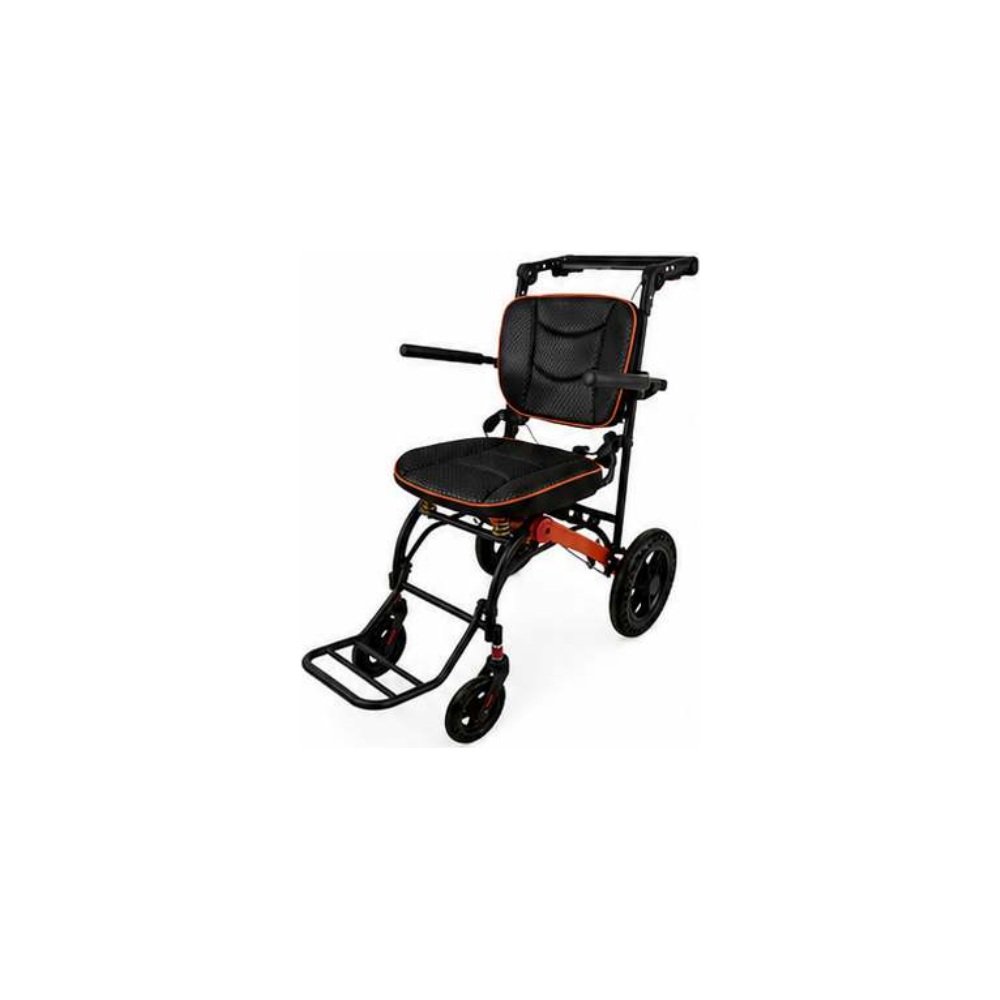

FeatherLite 520A Lightweight Foldable Wheelchair
Manual WheelchairsPDF available

FeatherLite 520A

FeatherLite 520A Lightweight Foldable Wheelchair

Net weight
12.67 kg
Seat width
430 mm
View specifications
Model
FeatherLite 520A
Seat height
530 mm
Seat depth
420 mm
Seat width
430 mm
Front wheel
6 in
Rear wheel
12 in
Push handle height
1120 mm
Armrest height
760 mm
Folded dimensions
540 × 340 × 740 mm
Open dimensions
1015 × 550 × 1120 mm
Package dimensions
550 × 350 × 760 mm
Net weight
12.67 kg
Gross weight
14.36 kg
Download PDF View product →

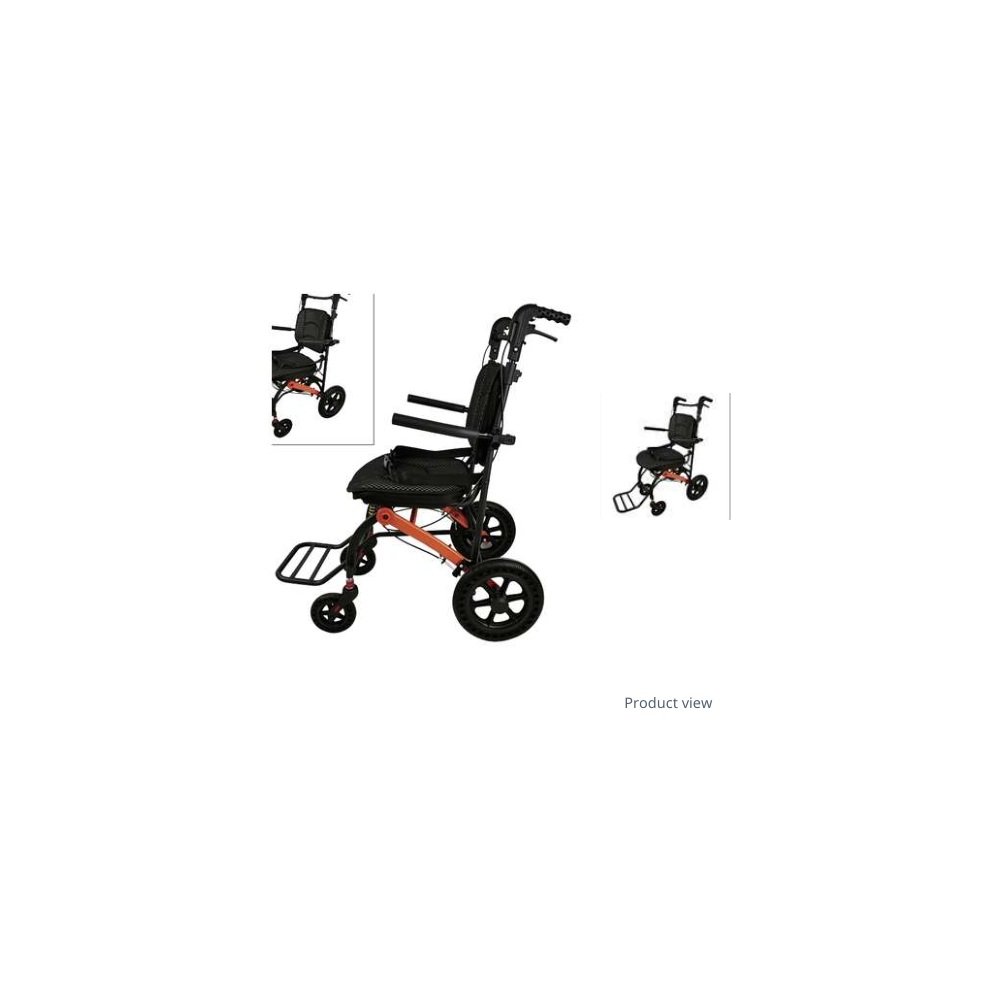

FeatherLite 522H Adjustable-Armrest Transit Wheelchair
Manual WheelchairsPDF available

FeatherLite 522H

FeatherLite 522H Adjustable-Armrest Transit Wheelchair

Net weight
12.64 kg
Seat width
420 mm
View specifications
Model
FeatherLite 522H
Seat height
530 mm
Seat depth
420 mm
Seat width
420 mm
Front wheel
6 in
Rear wheel
12 in
Push handle height
1040-1090 mm
Armrest height
760 mm
Folded dimensions
540 × 340 × 740 mm
Open dimensions
955 × 550 × 1040-1090 mm
Package dimensions
550 × 350 × 760 mm
Net weight
12.64 kg
Gross weight
14.23 kg
Download PDF View product →

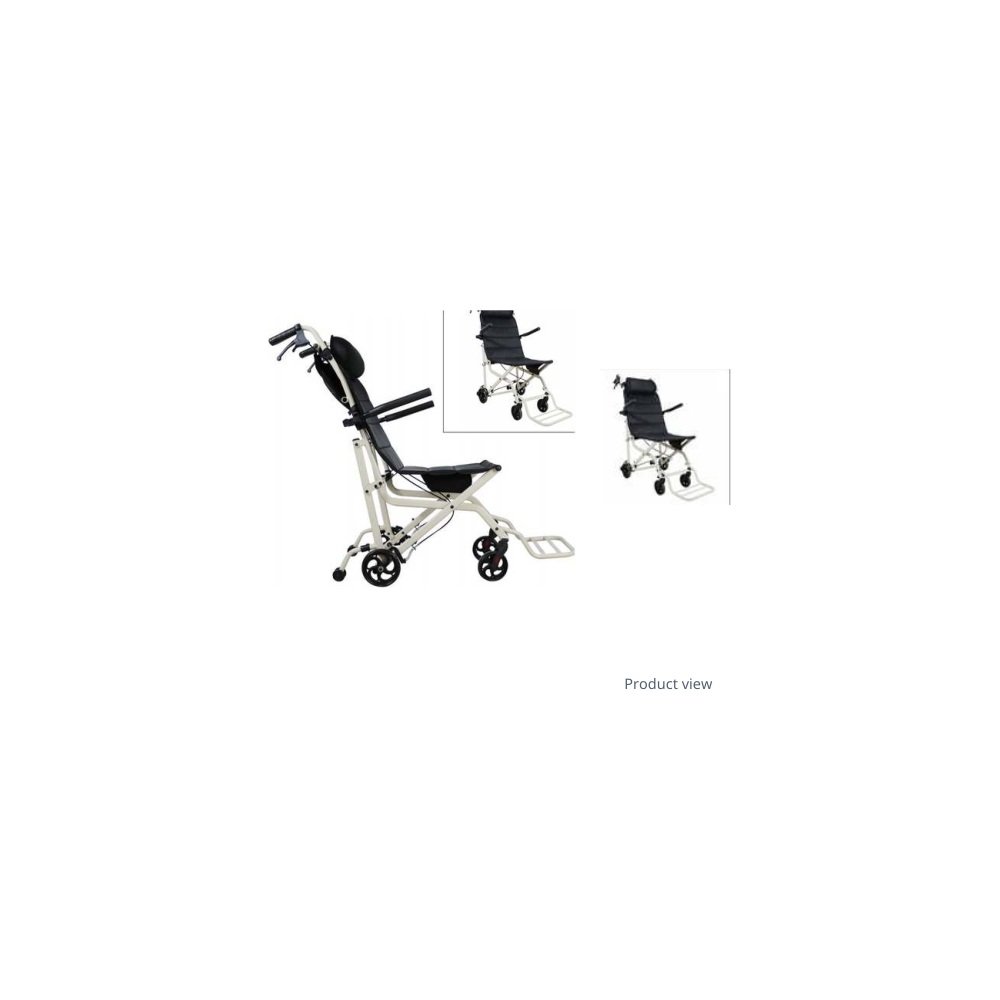

FeatherLite 523R Ultra-Light Reclining Transit Chair
Manual WheelchairsPDF available

FeatherLite 523R

FeatherLite 523R Ultra-Light Reclining Transit Chair

Net weight
9.45 kg
Seat width
430 mm
View specifications
Model
FeatherLite 523R
Seat height
490 mm
Seat depth
390 mm
Seat width
430 mm
Front wheel
6 in
Rear wheel
6 in
Push handle height
1050 mm
Armrest height
700 mm
Folded dimensions
510 × 220 × 740 mm
Open dimensions
1130 × 510 × 1050 mm
Package dimensions
520 × 230 × 760 mm
Net weight
9.45 kg
Gross weight
10.83 kg
Download PDF View product →

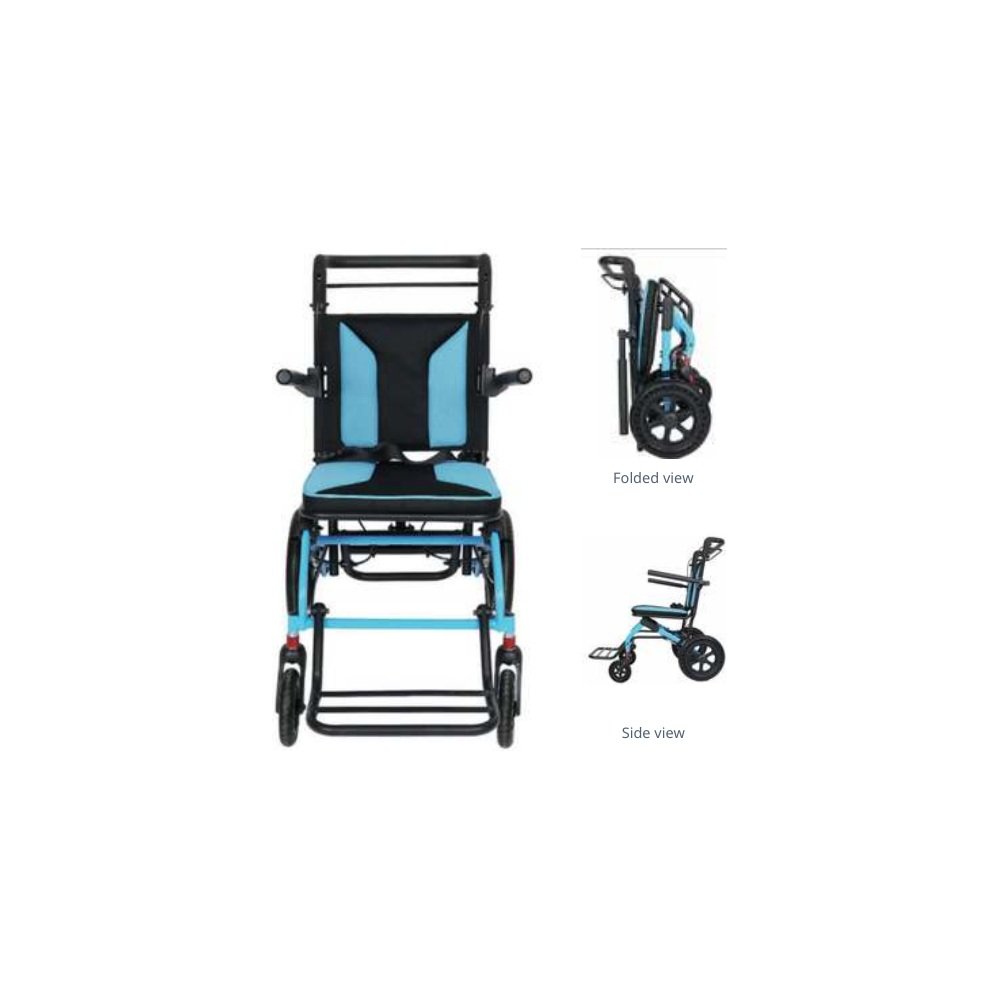

FeatherLite 524A Ultra-Light Auto-Fold Wheelchair
Manual WheelchairsPDF available

FeatherLite 524A

FeatherLite 524A Ultra-Light Auto-Fold Wheelchair

Net weight
9.33 kg
Seat width
410 mm
View specifications
Model
FeatherLite 524A
Seat height
460 mm
Seat depth
390 mm
Seat width
410 mm
Front wheel
6 in
Rear wheel
12 in
Push handle height
910 mm
Armrest height
700 mm
Folded dimensions
580 × 330 × 680 mm
Open dimensions
925 × 580 × 910 mm
Package dimensions
590 × 340 × 690 mm
Net weight
9.33 kg
Gross weight
11.10 kg
Download PDF View product →

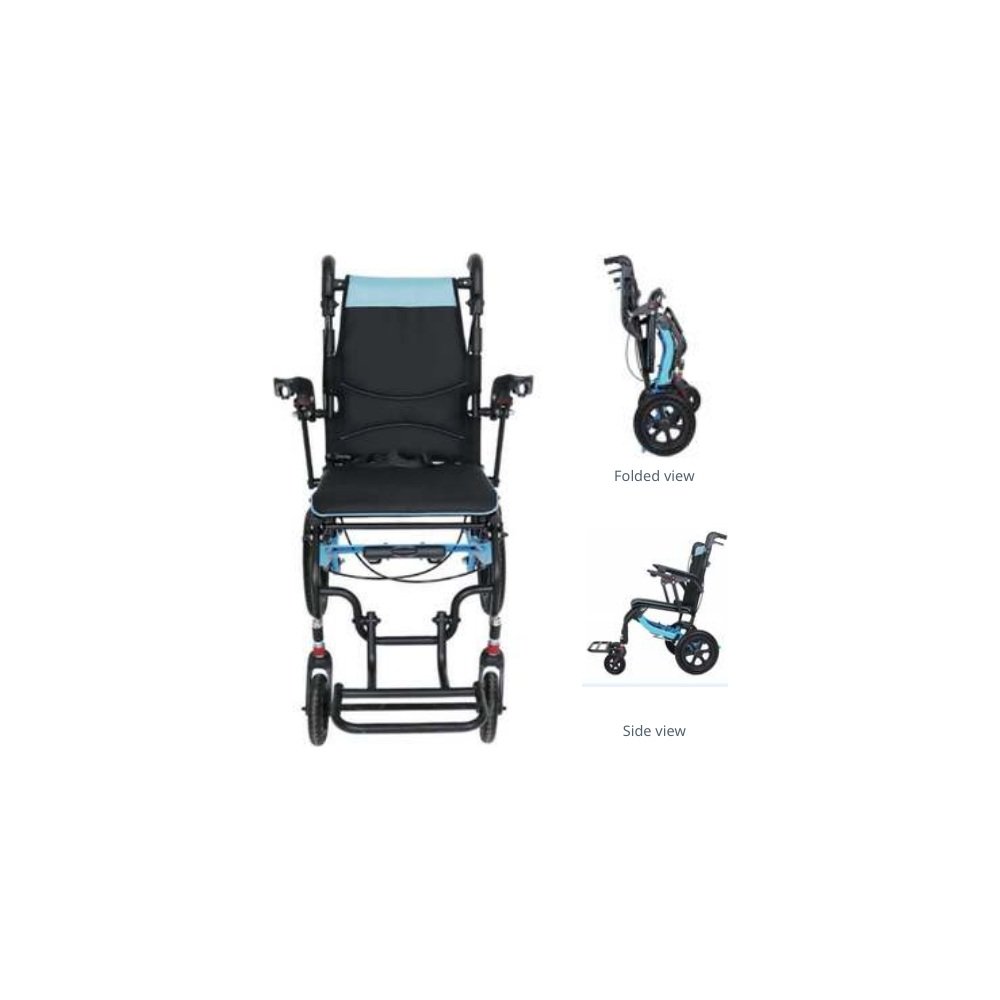

FeatherLite 525S Synchronized-Armrest Folding Wheelchair
Manual WheelchairsPDF available

FeatherLite 525S

FeatherLite 525S Synchronized-Armrest Folding Wheelchair

Net weight
11.57 kg
Seat width
400 mm
View specifications
Model
FeatherLite 525S
Seat height
490 mm
Seat depth
390 mm
Seat width
400 mm
Front wheel
6 in
Rear wheel
12 in
Push handle height
910-980 mm
Armrest height
710 mm
Folded dimensions
540 × 300 × 770 mm
Open dimensions
945 × 550 × 910-980 mm
Package dimensions
550 × 320 × 790 mm
Net weight
11.57 kg
Gross weight
13.20 kg
Download PDF View product →

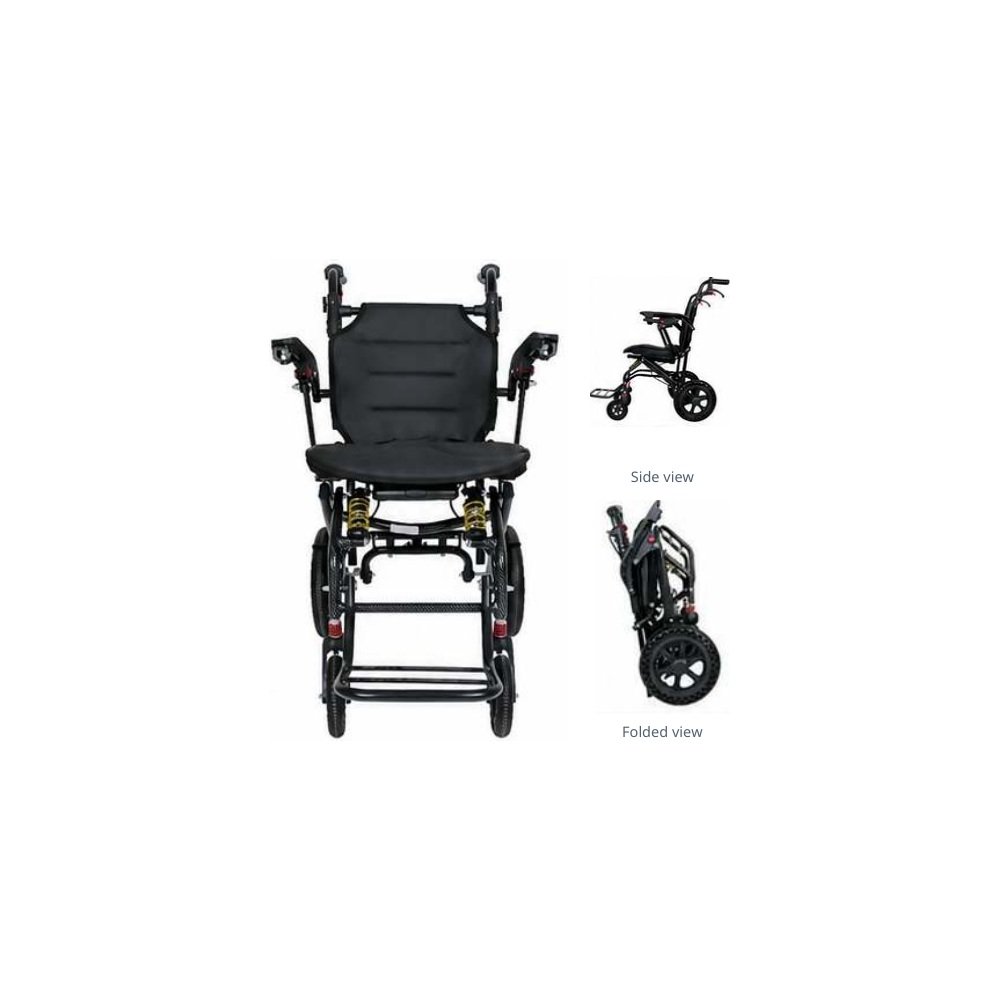

FeatherLite 526A Lightweight Folding Wheelchair
Manual WheelchairsPDF available

FeatherLite 526A

FeatherLite 526A Lightweight Folding Wheelchair

Net weight
11.44 kg
Seat width
440 mm
View specifications
Model
FeatherLite 526A
Seat height
520 mm
Seat depth
420 mm
Seat width
440 mm
Front wheel
6 in
Rear wheel
12 in
Push handle height
960 mm
Armrest height
730 mm
Folded dimensions
540 × 340 × 740 mm
Open dimensions
970 × 540 × 960 mm
Package dimensions
550 × 350 × 760 mm
Net weight
11.44 kg
Gross weight
13.24 kg
Download PDF View product →

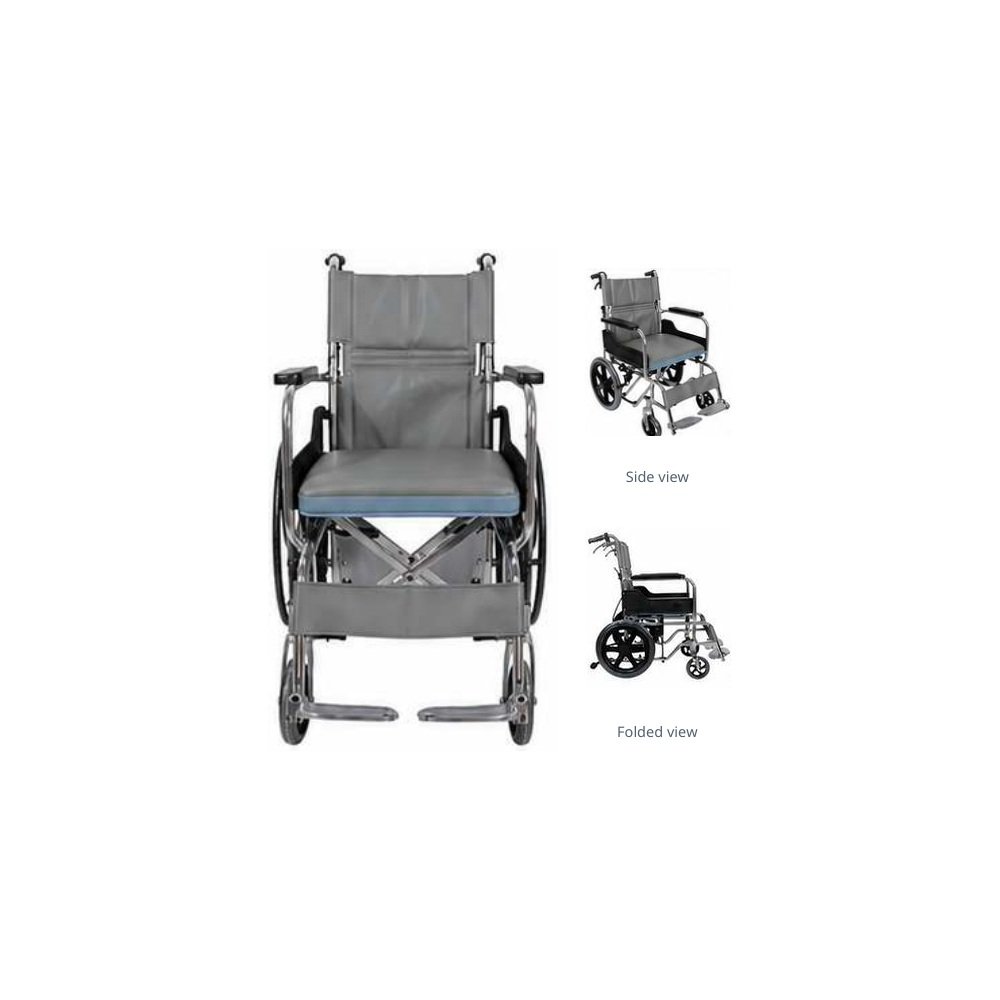

FeatherLite 527M Lightweight Manual Wheelchair
Manual WheelchairsPDF available

FeatherLite 527M

FeatherLite 527M Lightweight Manual Wheelchair

Net weight
13.5 kg
Seat width
430 mm
View specifications
Model
FeatherLite 527M
Seat height
490 mm
Seat depth
440 mm
Seat width
430 mm
Front wheel
6 in
Rear wheel
16 in
Push handle height
940 mm
Armrest height
660 mm
Folded dimensions
890 × 295 × 660 mm
Open dimensions
920 × 640 × 940 mm
Package dimensions
900 × 310 × 660 mm
Net weight
13.50 kg
Gross weight
15.20 kg
Download PDF View product →

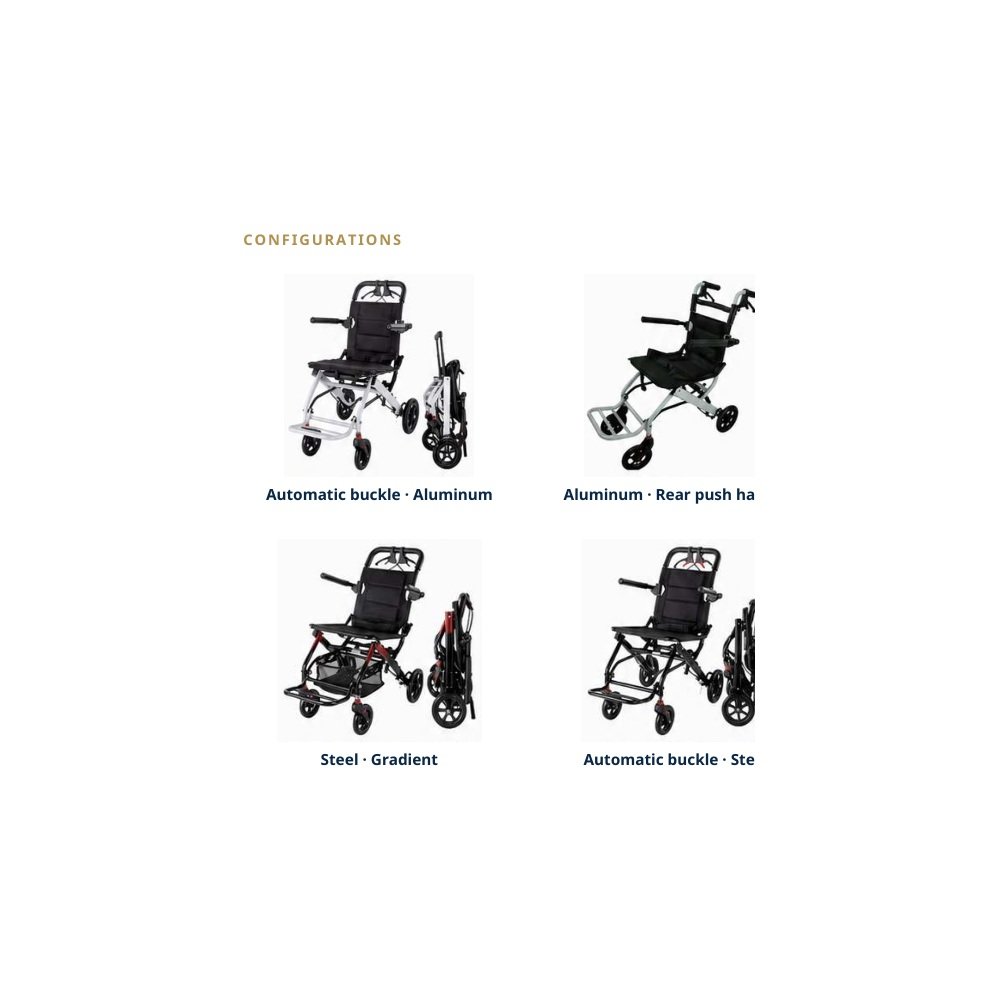

FeatherLite Z018 Lightweight Folding Wheelchair
Manual WheelchairsPDF available

FeatherLite Z018

FeatherLite Z018 Lightweight Folding Wheelchair

Net weight
8.7 kg
Seat width
400 mm
View specifications
Model
FeatherLite Z018
Seat height
475 mm
Seat depth
360 mm
Seat width
400 mm
Front wheel
6 in
Rear wheel
8 in
Push handle height
870 mm
Armrest height
680 mm
Folded dimensions
720 × 510 × 330 mm
Open dimensions
820 × 510 × 870 mm
Package dimensions
520 × 280 × 760 mm
Net weight
8.70 kg
Gross weight
10.00 kg
Download PDF View product →
GoRide 101F Electric Folding Mobility Scooter
Mobility ScootersPDF available

GoRide 101F

GoRide 101F Electric Folding Mobility Scooter

View specifications
Model
GoRide 101F
Open size
852 × 550 × 865 mm
Seat cushion
440 × 390 × 55 mm
Backrest width
400 mm
Front wheel
8 in
Rear wheel
8 in
Static stability
9°
Dynamic stability
6°
Brake
24 VDC / 1.5 N·m
Battery pack
25.2 V / 10.4 Ah
Drive motor
24 VDC / 140 W
Speed
1.5-6 km/h
Charger
29.4 V / 2.0 A
Theoretical range
10.2 km
Brake type
Electromagnetic brake
Battery type
Lithium battery
Packing size
L86 × W62 × H41 cm
Carton quantity
1 pc
Download PDF View product →
KidMotion 110P Power Pediatric Wheelchair
Pediatric WheelchairsPDF available

KidMotion 110P

KidMotion 110P Power Pediatric Wheelchair

Net weight
40 kg
Seat width
380 mm
View specifications
Model
KidMotion 110P
Overall width
56 cm
Seat width
38 cm
Seat depth
32 cm
Front wheel
20 cm
Rear wheel
52 cm
Overall height
96 cm
Range
20 km
Speed
1-7 km/h
Battery
23 Ah
Motor
200 W × 2
Charger
4 A
Climbing angle
12°
Max. load
75 kg
Packing size
86 × 58 × 75 cm
Net weight
40 kg
Gross weight
48.9 kg
Download PDF View product →

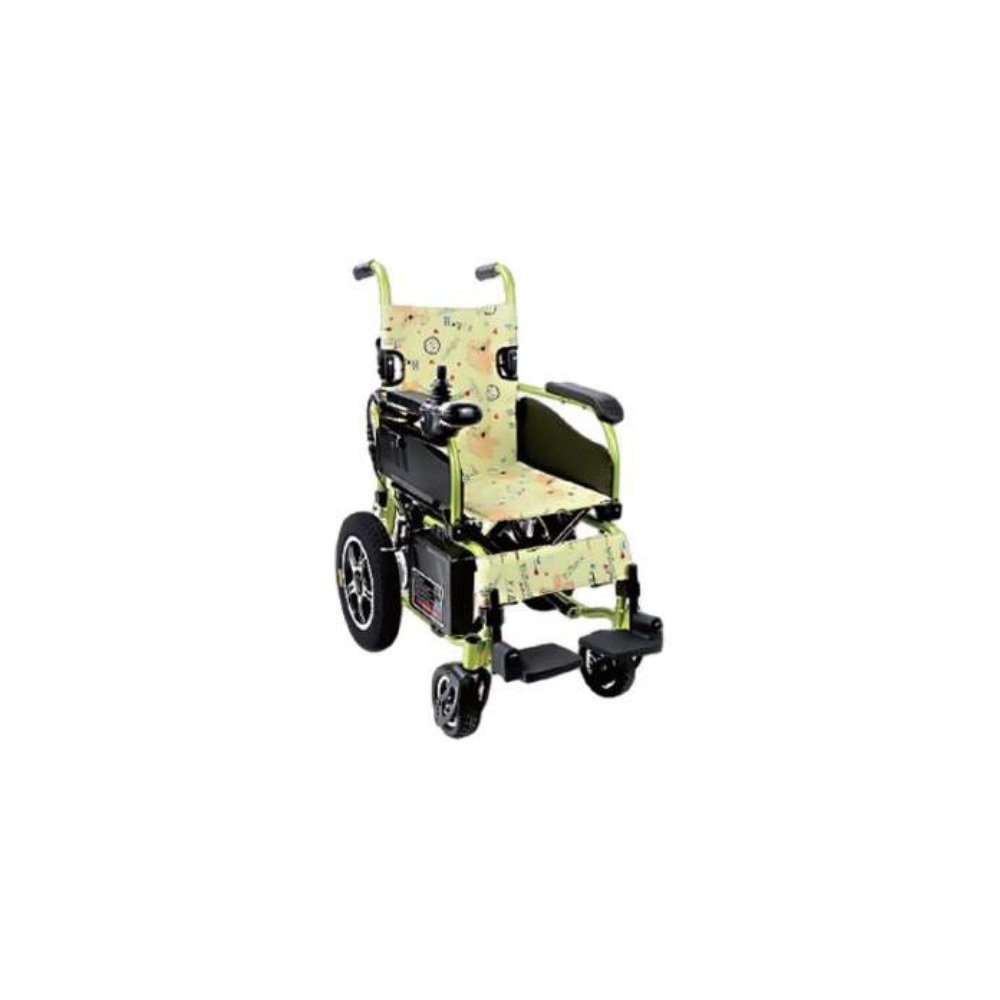

KidMotion 111P Compact Power Pediatric Wheelchair
Pediatric WheelchairsPDF available

KidMotion 111P

KidMotion 111P Compact Power Pediatric Wheelchair

Net weight
24.1 kg
Seat width
350 mm
View specifications
Model
KidMotion 111P
Overall width
52.5 cm
Seat width
35 cm
Seat depth
32 cm
Front wheel
15 cm
Rear wheel
44 cm
Overall height
88.5 cm
Range
8 km
Speed
1-6 km/h
Battery
7.8 Ah
Motor
250 W × 2
Charger
4 A
Climbing angle
8°
Max. load
75 kg
Packing size
82 × 46 × 75 cm
Net weight
24.1 kg
Gross weight
28.6 kg
Download PDF View product →

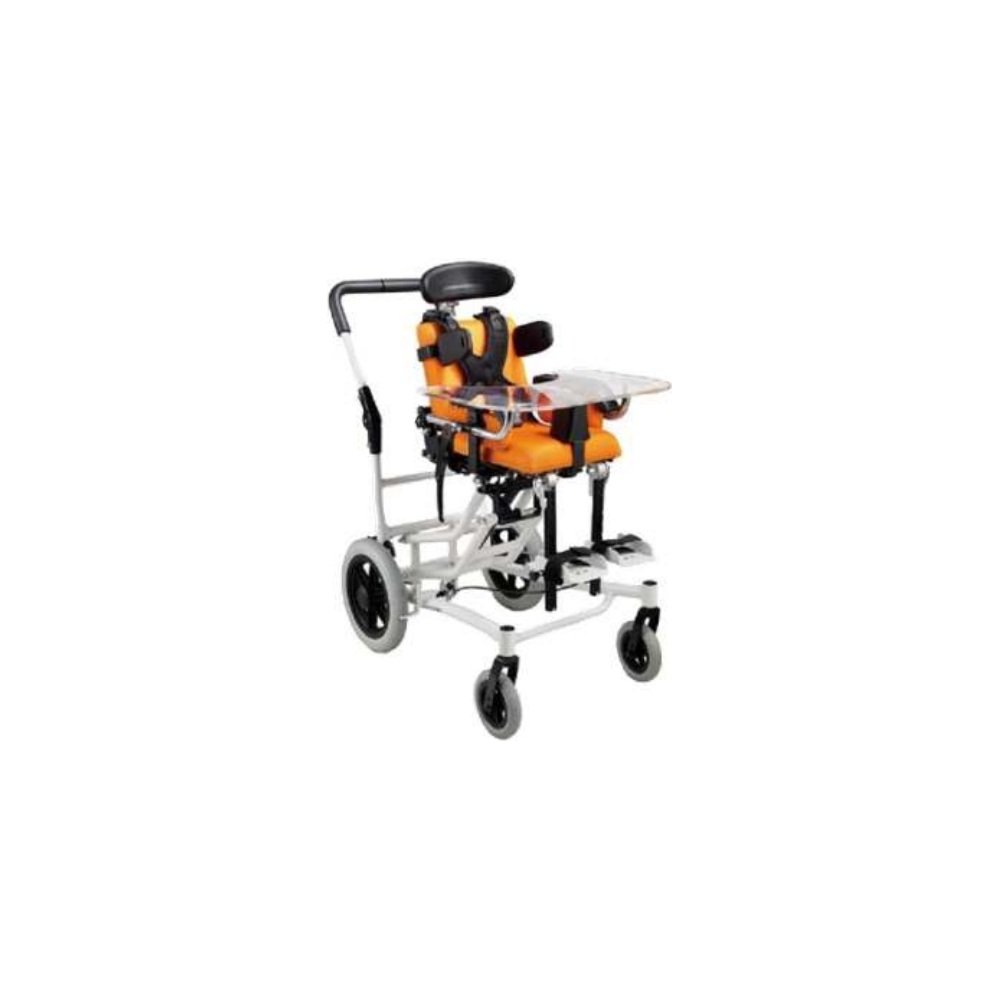

KidMotion 112T Pediatric Tilt-in-Space Wheelchair
Pediatric WheelchairsPDF available

KidMotion 112T

KidMotion 112T Pediatric Tilt-in-Space Wheelchair

Net weight
24 kg
Seat width
250 mm
View specifications
Model
KidMotion 112T
Overall width
52 cm
Seat width
25 cm
Rear wheel
30 cm
Front wheel
15 cm
Seat height
38-66 cm
Overall height
98-120 cm
Max. load
35 kg
Packing size
86 × 53 × 45 cm
Net weight
24 kg
Gross weight
27 kg
Download PDF View product →

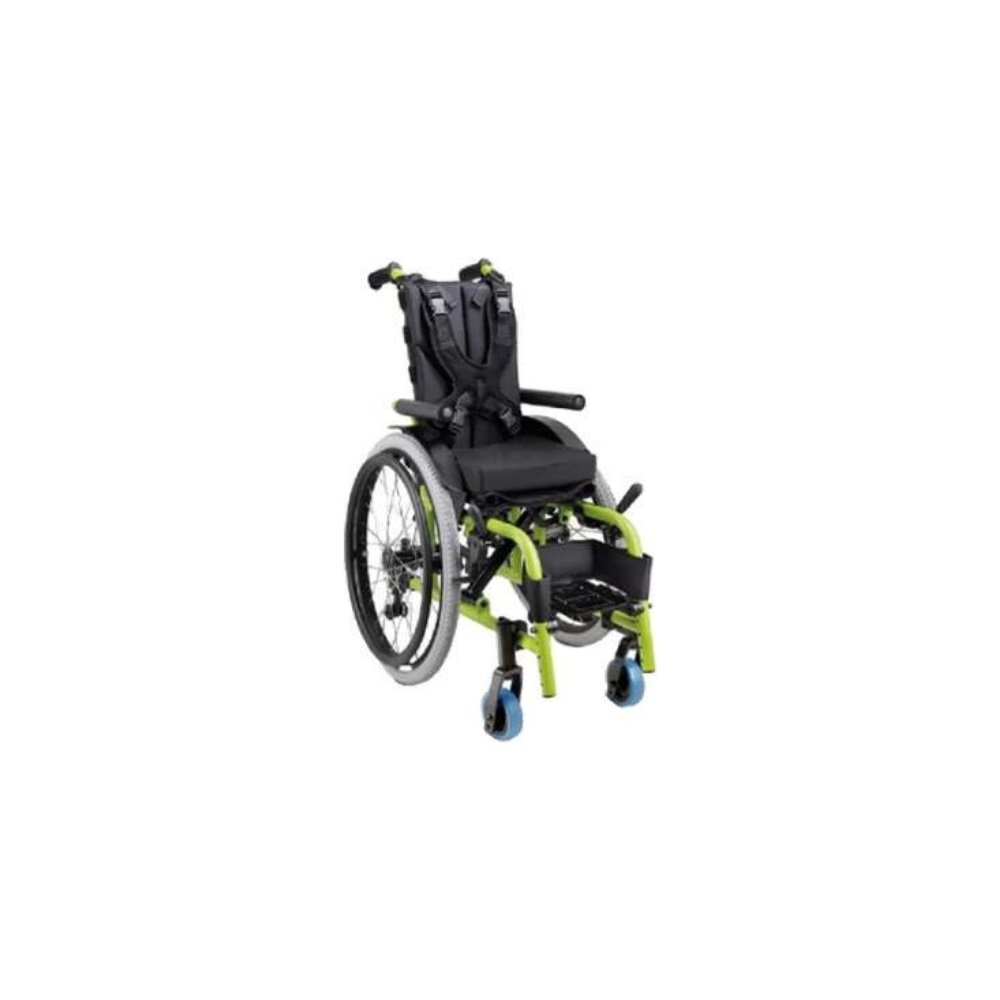

KidMotion 113M Adjustable Pediatric Manual Wheelchair
Pediatric WheelchairsPDF available

KidMotion 113M

KidMotion 113M Adjustable Pediatric Manual Wheelchair

Net weight
14.4 kg
View specifications
Model
KidMotion 113M
Overall width
50-60 cm
Seat width
25-35 cm
Rear wheel
52 cm
Front wheel
10 cm
Seat height
50-55 cm
Overall height
87-92 cm
Max. load
75 kg
Packing size
76 × 39 × 90 cm
Net weight
14.4 kg
Gross weight
17.4 kg
Download PDF View product →

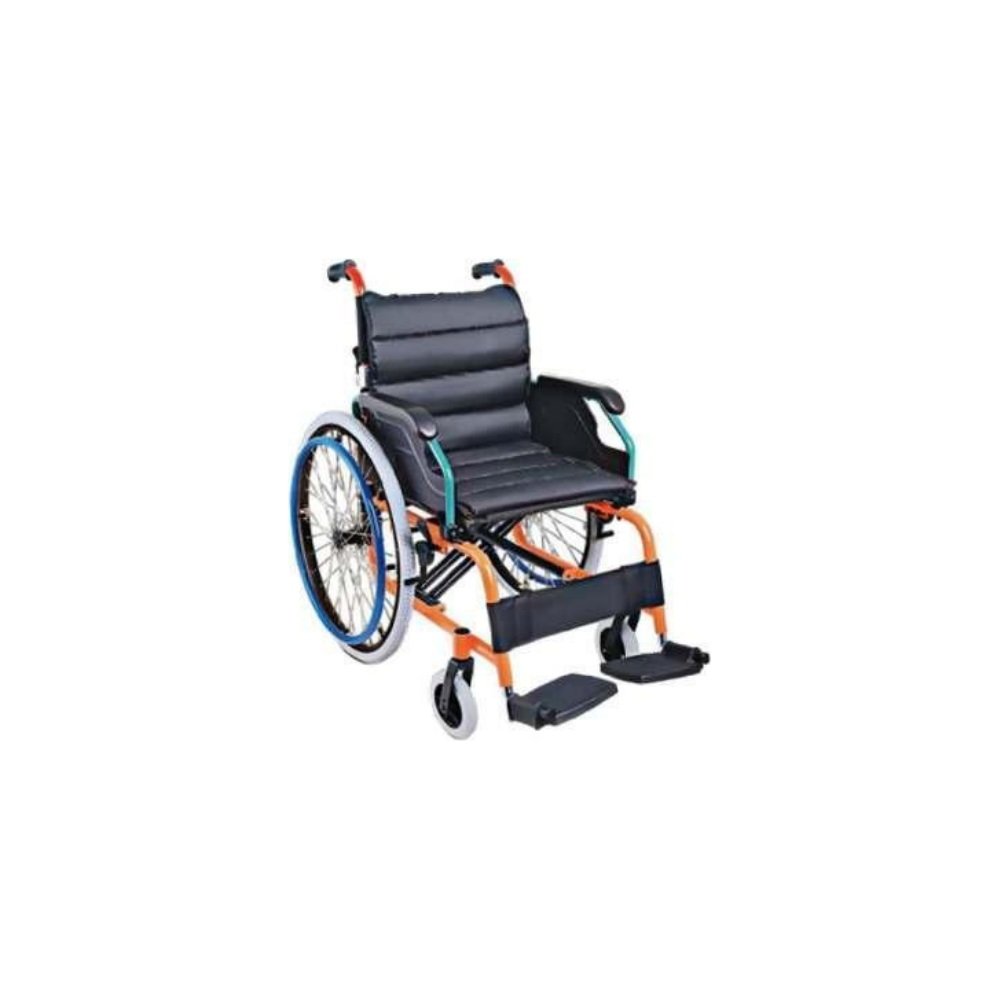

KidMotion 114M Pediatric Self-Propelled Wheelchair
Pediatric WheelchairsPDF available

KidMotion 114M

KidMotion 114M Pediatric Self-Propelled Wheelchair

Net weight
14.6 kg
Seat width
460 mm
View specifications
Model
KidMotion 114M
Overall width
64 cm
Seat width
46 cm
Rear wheel
61 cm
Front wheel
15 cm
Seat height
51 cm
Overall height
94 cm
Max. load
100 kg
Packing size
94 × 33 × 75 cm
Net weight
14.6 kg
Gross weight
17.6 kg
Download PDF View product →

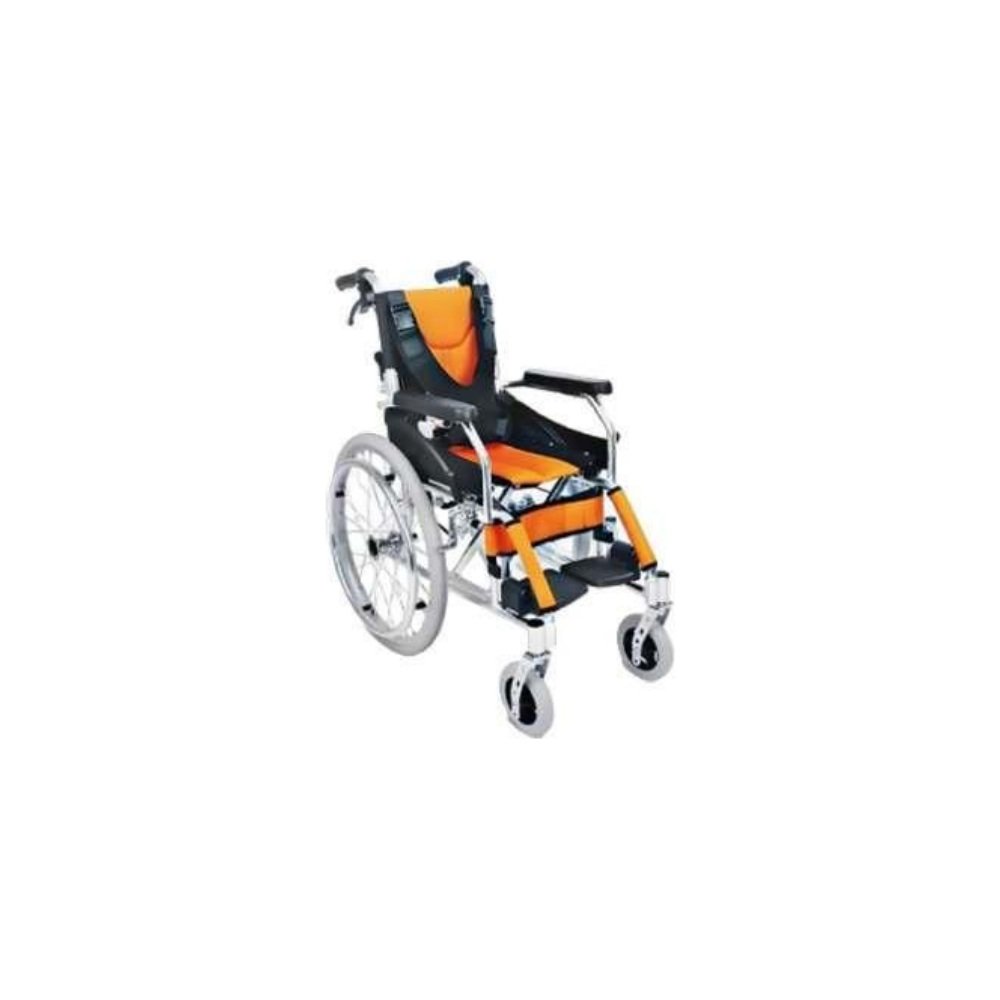

KidMotion 115M Compact Pediatric Manual Wheelchair
Pediatric WheelchairsPDF available

KidMotion 115M

KidMotion 115M Compact Pediatric Manual Wheelchair

Net weight
13.5 kg
Seat width
300 mm
View specifications
Model
KidMotion 115M
Overall width
46 cm
Seat width
30 cm
Rear wheel
52 cm
Front wheel
15 cm
Seat height
52 cm
Overall height
88 cm
Max. load
75 kg
Packing size
74 × 33 × 91 cm
Net weight
13.5 kg
Gross weight
15.5 kg
Download PDF View product →

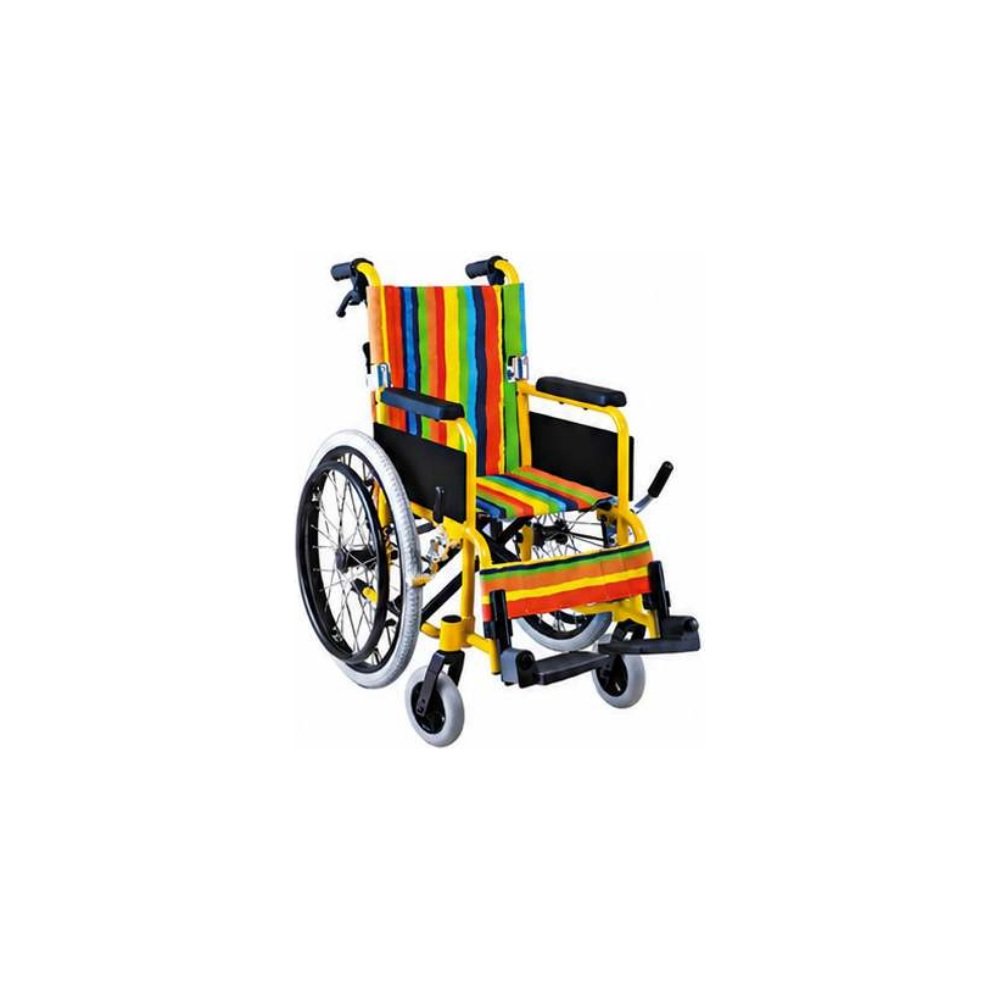

KidMotion 116M Pediatric Manual Wheelchair
Pediatric WheelchairsPDF available

KidMotion 116M

KidMotion 116M Pediatric Manual Wheelchair

Net weight
11.8 kg
Seat width
300 mm
View specifications
Model
KidMotion 116M
Overall width
53 cm
Seat width
30 cm
Rear wheel
53 cm
Front wheel
15 cm
Seat height
44 cm
Overall height
85 cm
Max. load
75 kg
Packing size
78 × 28 × 68 cm
Net weight
11.8 kg
Gross weight
14.4 kg
Download PDF View product →

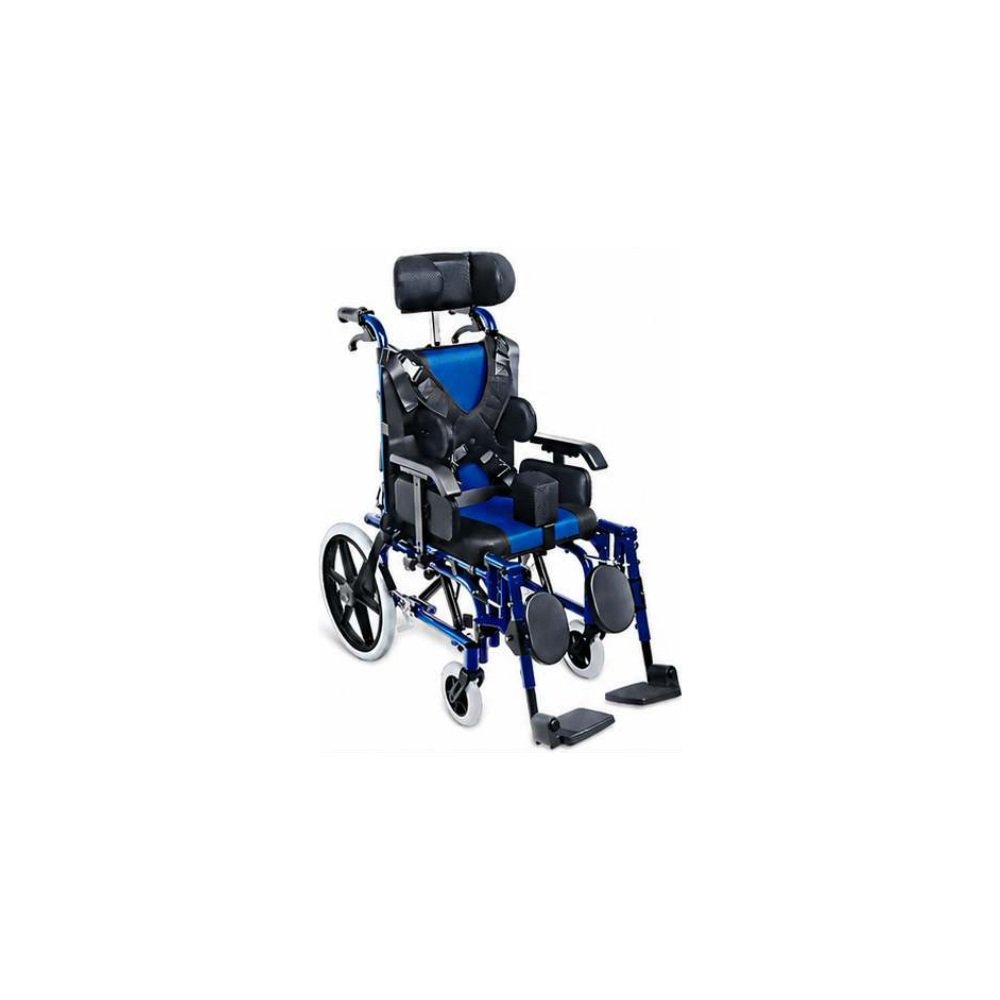

KidMotion 116R Pediatric Wheelchair
Pediatric WheelchairsPDF available

KidMotion 116R

KidMotion 116R Pediatric Wheelchair

Net weight
21.4 kg
Seat width
520 mm
View specifications
Model
KidMotion 116R
Seat width
52 cm
Seat depth
38 cm
Seat height
38 cm
Rear wheel
15 in
Seat height range
49 cm
Overall height
96-114 cm
Max. load
75 kg
Packing size
77 × 40 × 95 cm
Net weight
21.4 kg
Gross weight
24.3 kg
Download PDF View product →

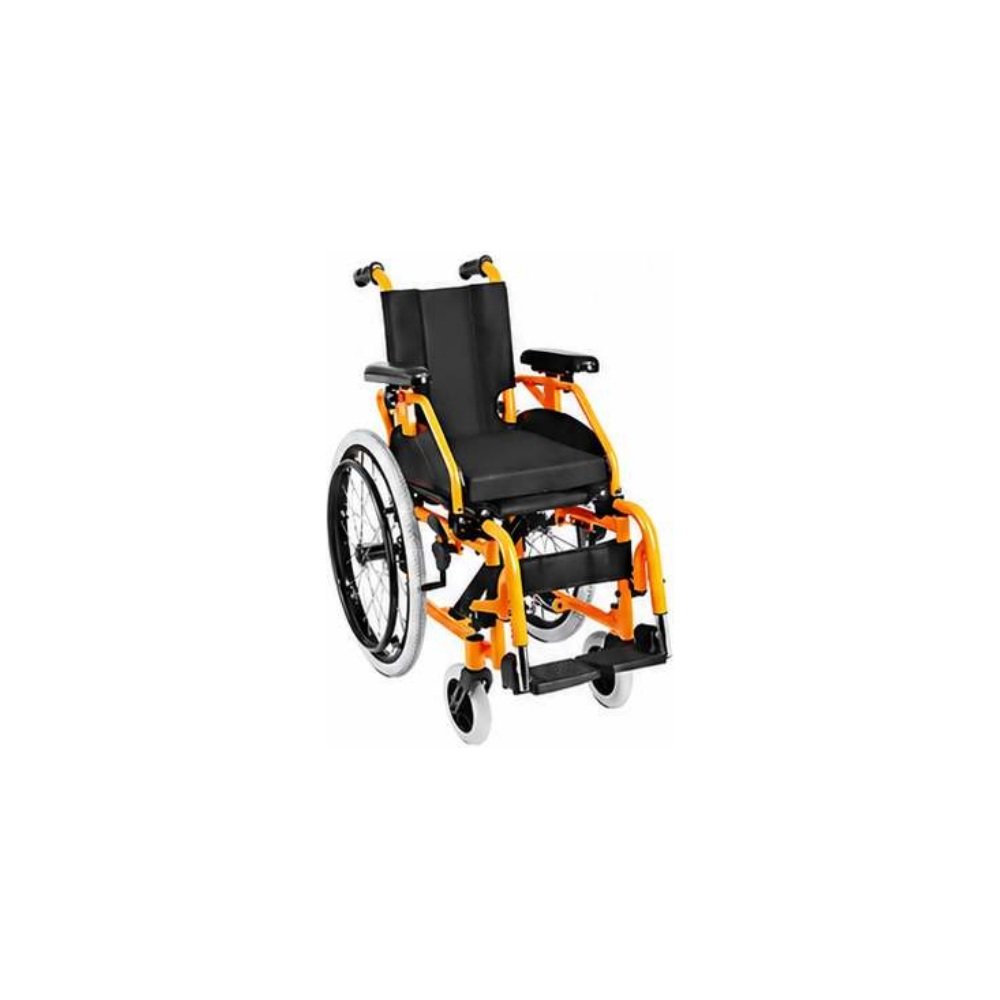

KidMotion 117M Pediatric Manual Wheelchair
Pediatric WheelchairsPDF available

KidMotion 117M

KidMotion 117M Pediatric Manual Wheelchair

Net weight
13.5 kg
Seat width
300 mm
View specifications
Model
KidMotion 117M
Overall width
46 cm
Seat width
30 cm
Rear wheel
52 cm
Front wheel
15 cm
Seat height
52 cm
Overall height
88 cm
Max. load
75 kg
Packing size
74 × 33 × 91 cm
Net weight
13.5 kg
Gross weight
15.5 kg
Download PDF View product →

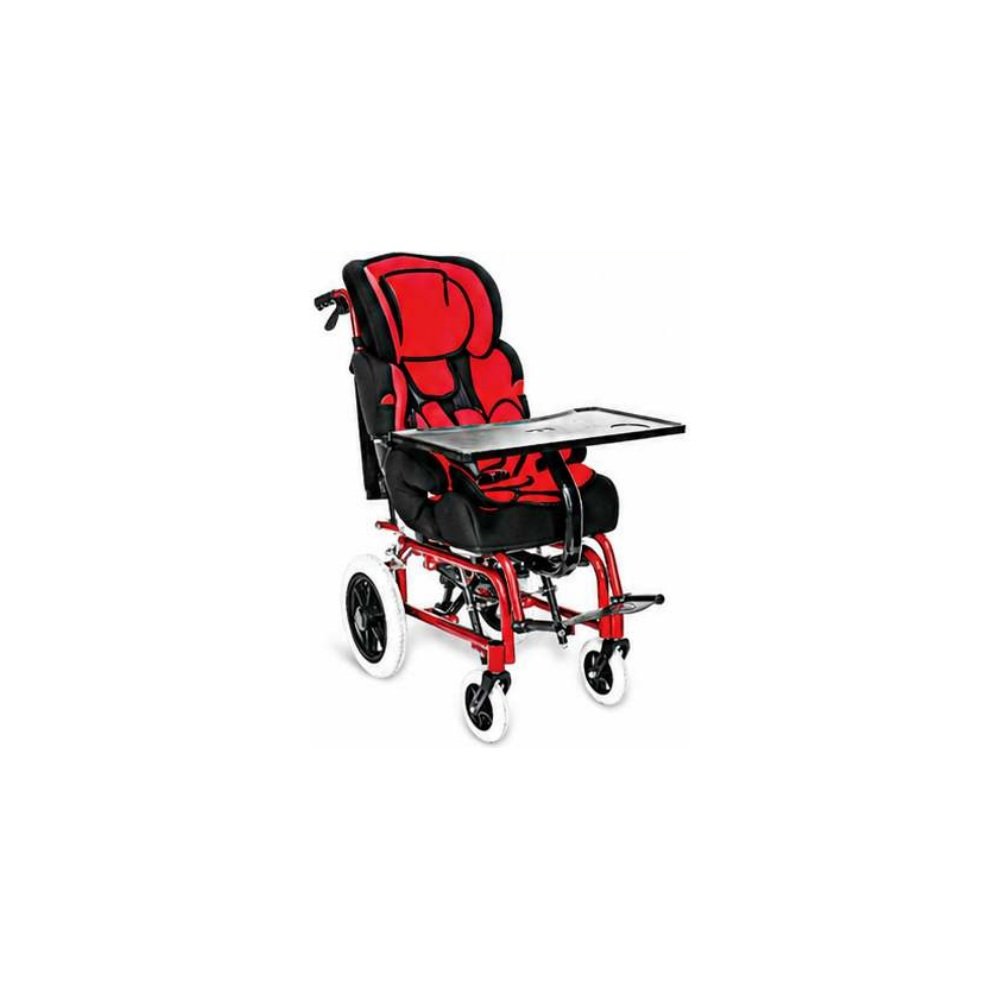

KidMotion 117T Pediatric Wheelchair
Pediatric WheelchairsPDF available

KidMotion 117T

KidMotion 117T Pediatric Wheelchair

Net weight
17.4 kg
Seat width
420 mm
View specifications
Model
KidMotion 117T
Seat width
42 cm
Seat depth
30 cm
Seat height
30 cm
Rear wheel
15 in
Seat height range
49 cm
Overall height
103 cm
Max. load
75 kg
Packing size
80 × 41 × 69 cm
Net weight
17.4 kg
Gross weight
20.7 kg
Download PDF View product →

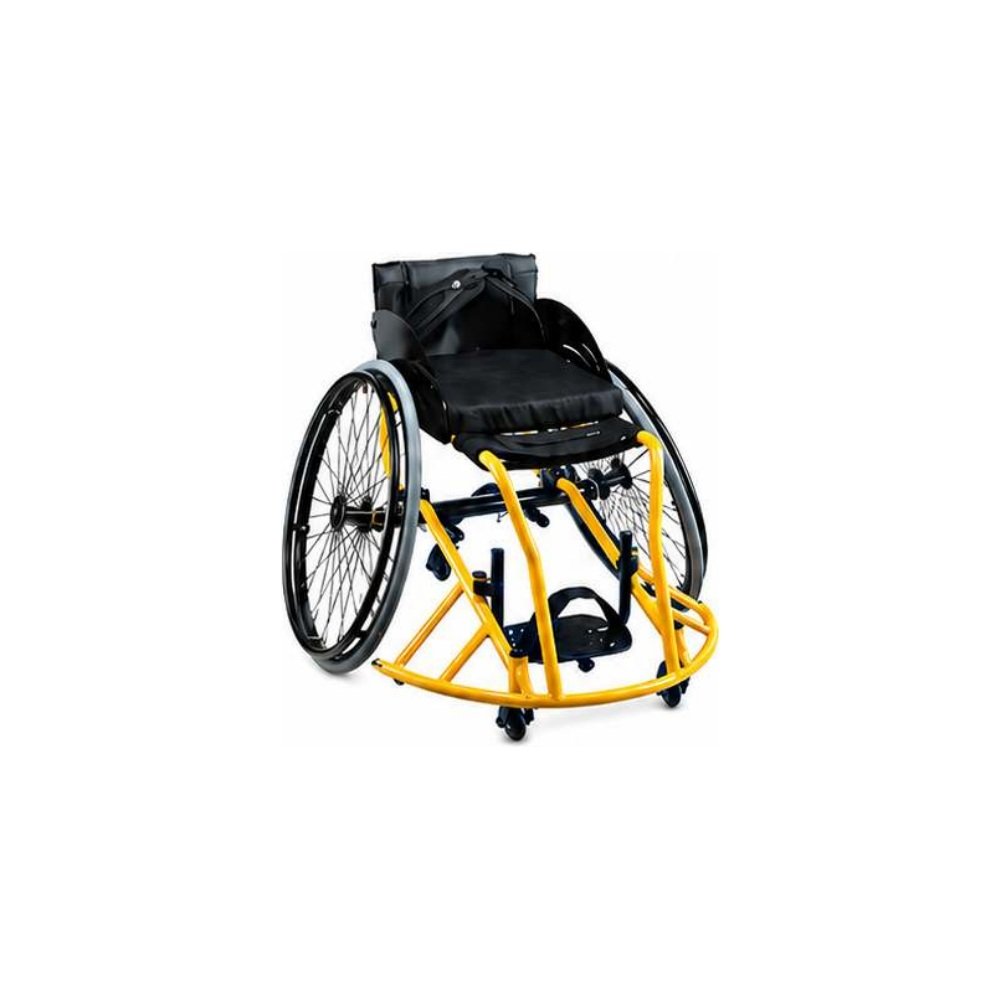

SportMotion 770C Sports Wheelchair
Sports WheelchairsPDF available

SportMotion 770C

SportMotion 770C Sports Wheelchair

Net weight
13.1 kg
Seat width
360 mm
View specifications
Model
SportMotion 770C
Overall width
87.5 cm
Seat width
36 cm
Rear wheel
65 cm
Front wheel
7.5 in
Seat height
58 cm
Overall height
79 cm
Max. load
100 kg
Packing size
90 × 76 × 68 cm
Net weight
13.1 kg
Gross weight
16.1 kg
Download PDF View product →

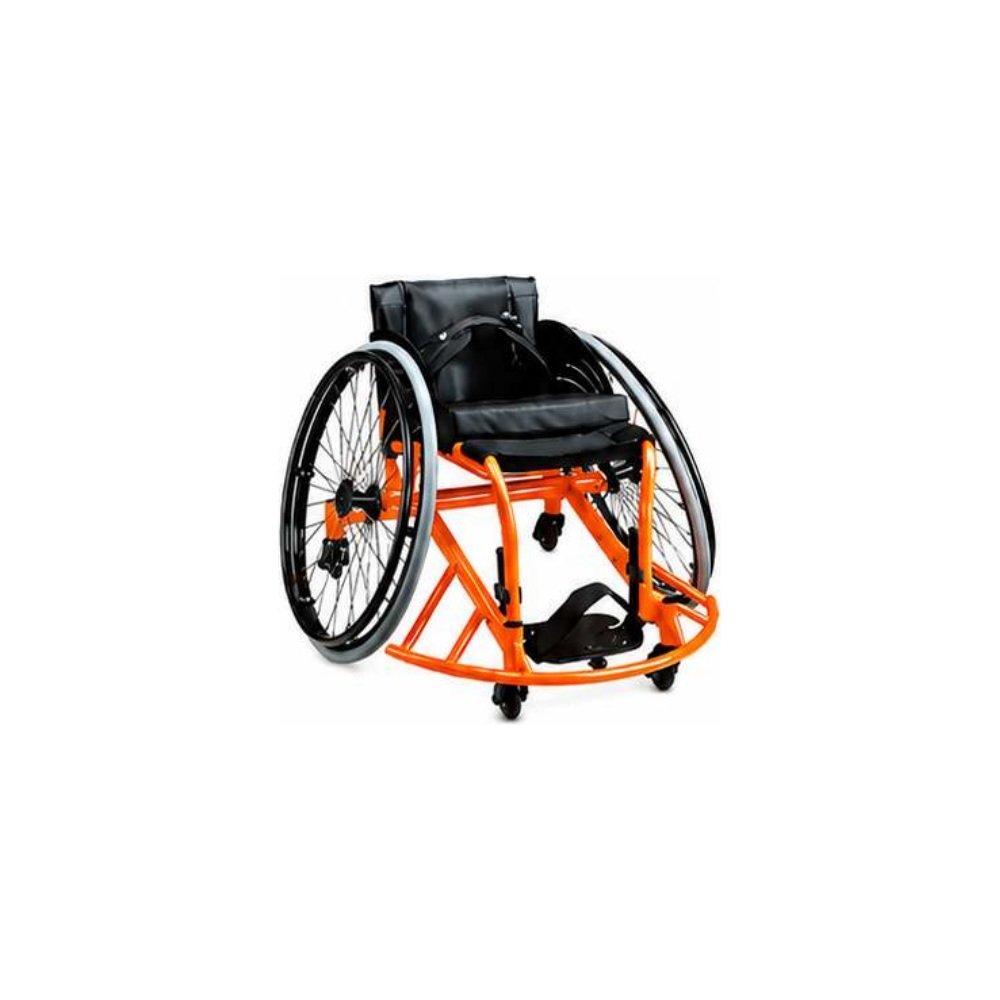

SportMotion 780G Sports Wheelchair
Sports WheelchairsPDF available

SportMotion 780G

SportMotion 780G Sports Wheelchair

Net weight
12.8 kg
Seat width
360 mm
View specifications
Model
SportMotion 780G
Overall width
87.5 cm
Seat width
36 cm
Rear wheel
65 cm
Front wheel
7.5 in
Seat height
58 cm
Overall height
79 cm
Max. load
100 kg
Packing size
90 × 76 × 68 cm
Net weight
12.8 kg
Gross weight
14.8 kg
Download PDF View product →

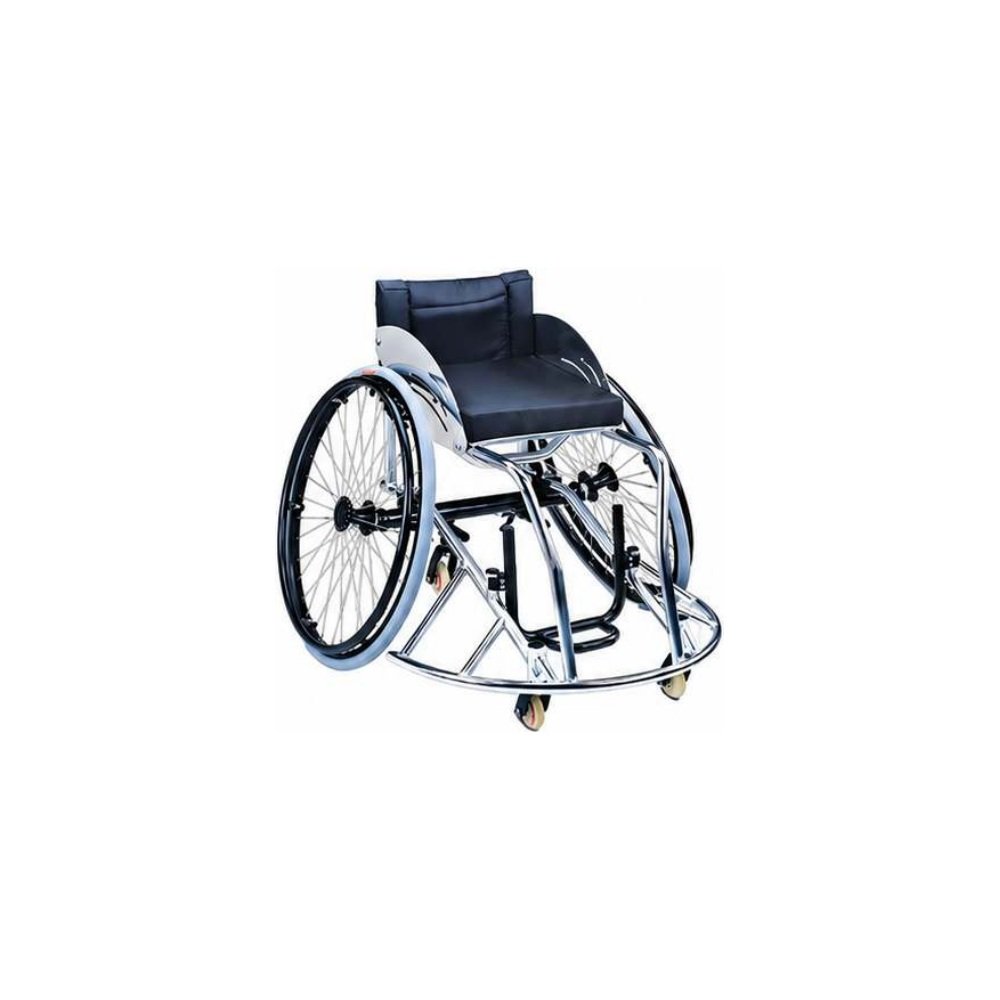

SportPro 720F Sports Wheelchair
Sports WheelchairsPDF available

SportPro 720F

SportPro 720F Sports Wheelchair

Net weight
13.1 kg
Seat width
360 mm
View specifications
Model
SportPro 720F
Overall height
87.5 cm
Seat width
36 cm
Seat depth
65 cm
Front wheel
7.5 in
Rear wheel
58 cm
Push handle height
79 cm
Max. load
100 kg
Packing size
90 × 76 × 68 cm
Net weight
13.1 kg
Gross weight
16.1 kg
Download PDF View product →

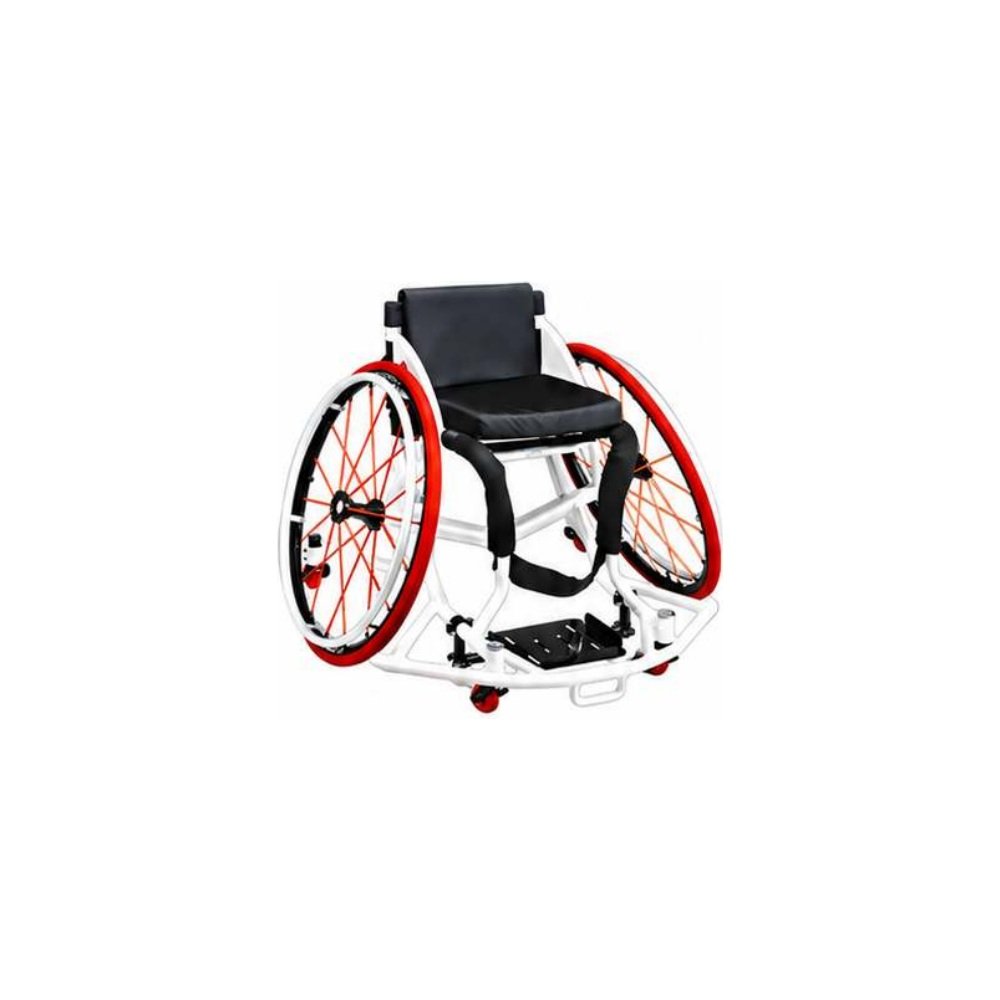

SportPro 721B Sports Wheelchair
Sports WheelchairsPDF available

SportPro 721B

SportPro 721B Sports Wheelchair

Net weight
13.6 kg
Seat width
360 mm
View specifications
Model
SportPro 721B
Overall height
93 cm
Seat width
36 cm
Seat depth
65 cm
Front wheel
6 in
Rear wheel
56 cm
Push handle height
75 cm
Max. load
100 kg
Packing size
80 × 84 × 78 cm
Net weight
13.6 kg
Gross weight
15 kg
Download PDF View product →

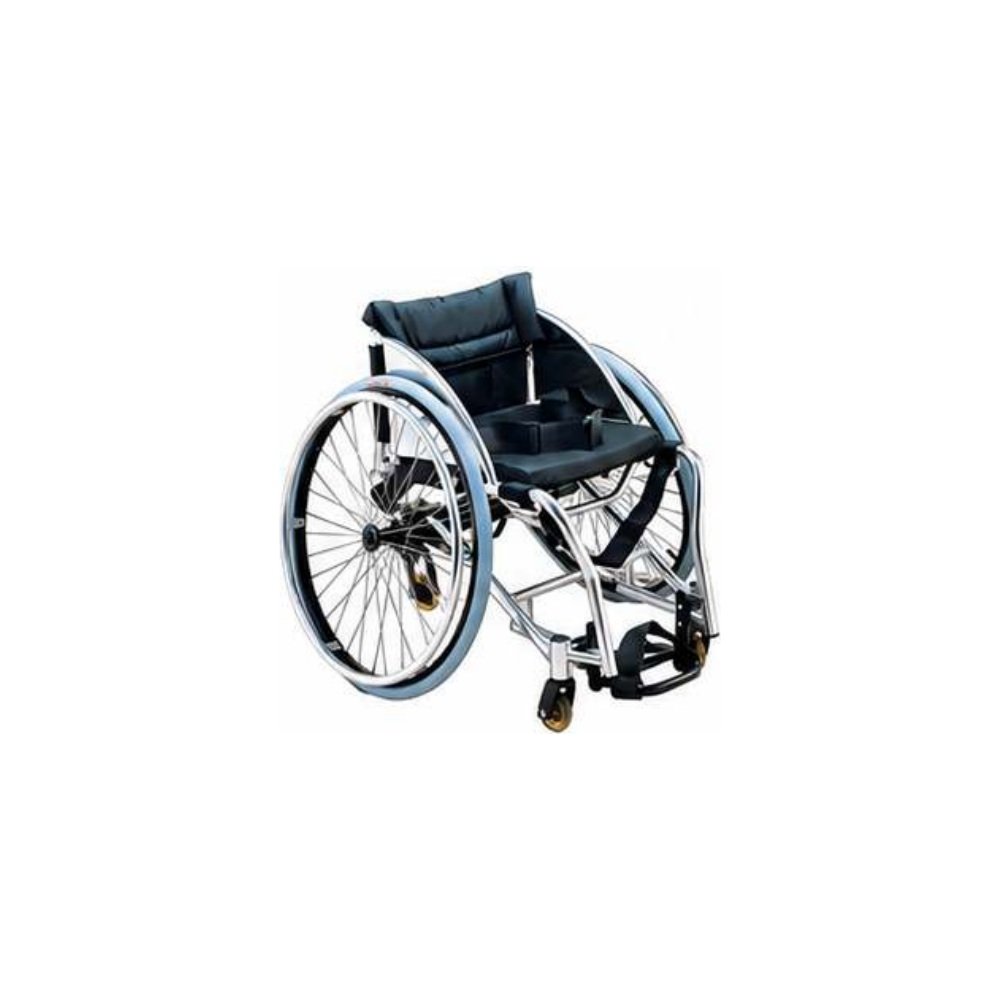

SportPro 730D Dancing Wheelchair
Sports WheelchairsPDF available

SportPro 730D

SportPro 730D Dancing Wheelchair

Net weight
11.3 kg
Seat width
360 mm
View specifications
Model
SportPro 730D
Overall width
73 cm
Seat width
36 cm
Rear wheel
60 cm
Front wheel
10 cm
Seat height
50 cm
Overall height
69 cm
Max. load
100 kg
Packing size
77 × 62 × 62 cm
Net weight
11.3 kg
Gross weight
13.3 kg
Download PDF View product →

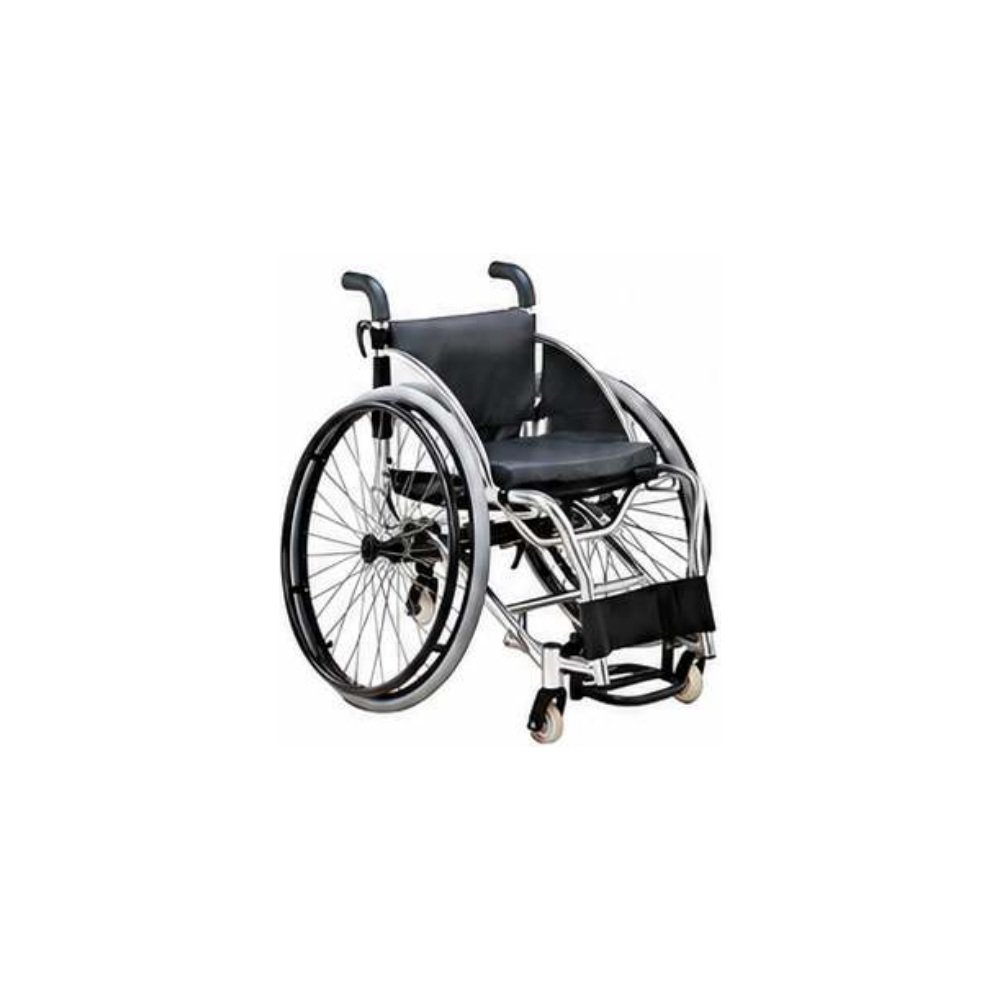

SportPro 731T Table Tennis Wheelchair
Sports WheelchairsPDF available

SportPro 731T

SportPro 731T Table Tennis Wheelchair

Net weight
12 kg
Seat width
360 mm
View specifications
Model
SportPro 731T
Overall width
73 cm
Seat width
36 cm
Rear wheel
60 cm
Front wheel
10 cm
Seat height
50 cm
Overall height
69 cm
Max. load
100 kg
Packing size
77 × 62 × 62 cm
Net weight
12 kg
Gross weight
14 kg
Download PDF View product →

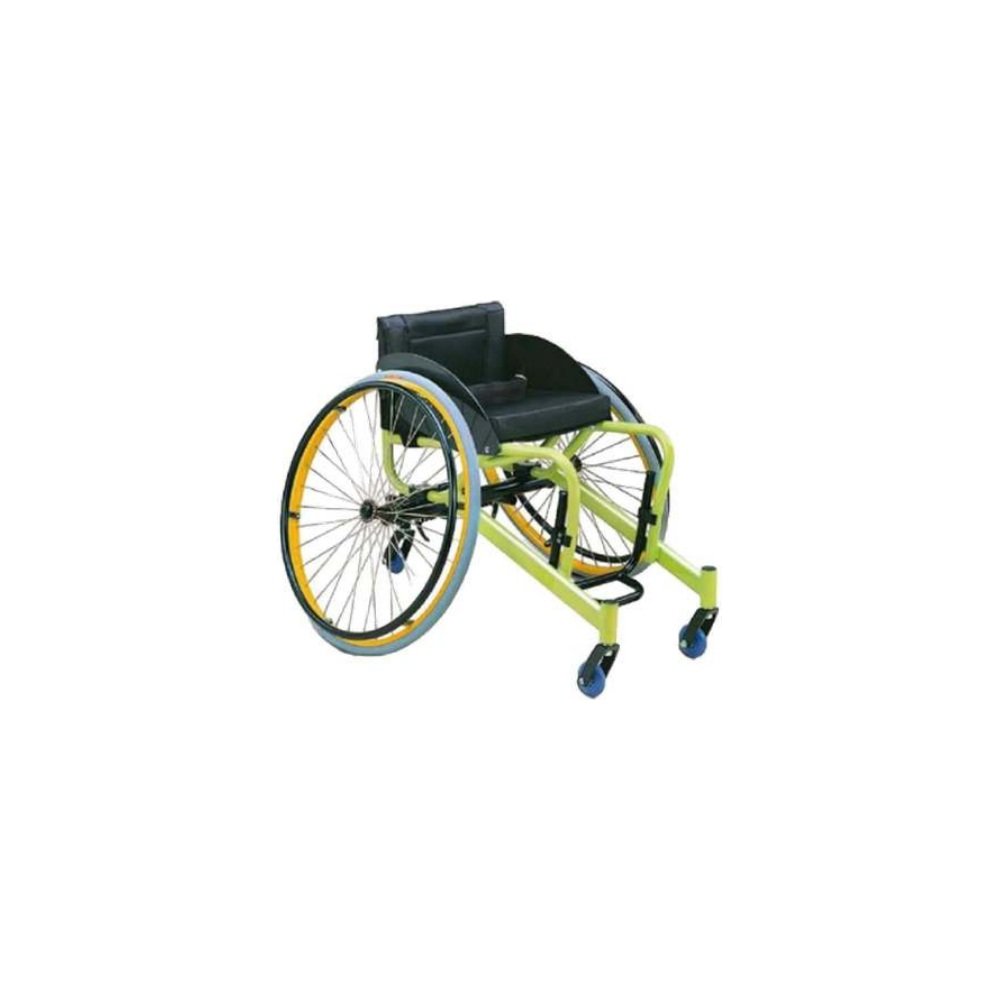

SportPro 732B Badminton Wheelchair
Sports WheelchairsPDF available

SportPro 732B

SportPro 732B Badminton Wheelchair

Net weight
12 kg
Seat width
360 mm
View specifications
Model
SportPro 732B
Overall length
90 cm
Seat width
36 cm
Rear wheel
65 cm
Front wheel
7.5 cm
Seat height
50 cm
Overall height
70 cm
Max. load
100 kg
Packing size
92 × 63 × 65 cm
Net weight
12 kg
Gross weight
14 kg
Download PDF View product →

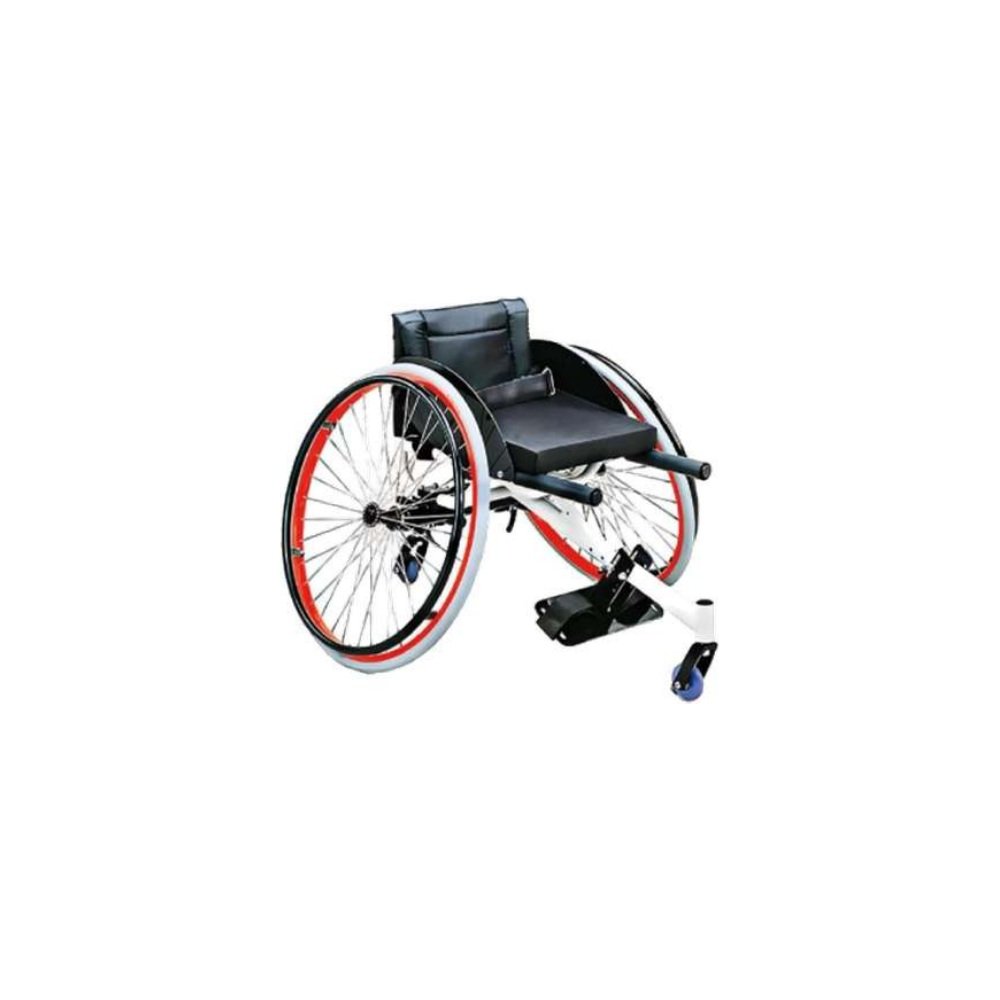

SportPro 733T Tennis Wheelchair
Sports WheelchairsPDF available

SportPro 733T

SportPro 733T Tennis Wheelchair

Net weight
11.9 kg
Seat width
360 mm
View specifications
Model
SportPro 733T
Overall length
86 cm
Seat width
36 cm
Rear wheel
65 cm
Front wheel
7.5 cm
Seat height
49 cm
Overall height
70 cm
Max. load
100 kg
Packing size
93 × 59 × 67 cm
Net weight
11.9 kg
Gross weight
13.9 kg
Download PDF View product →

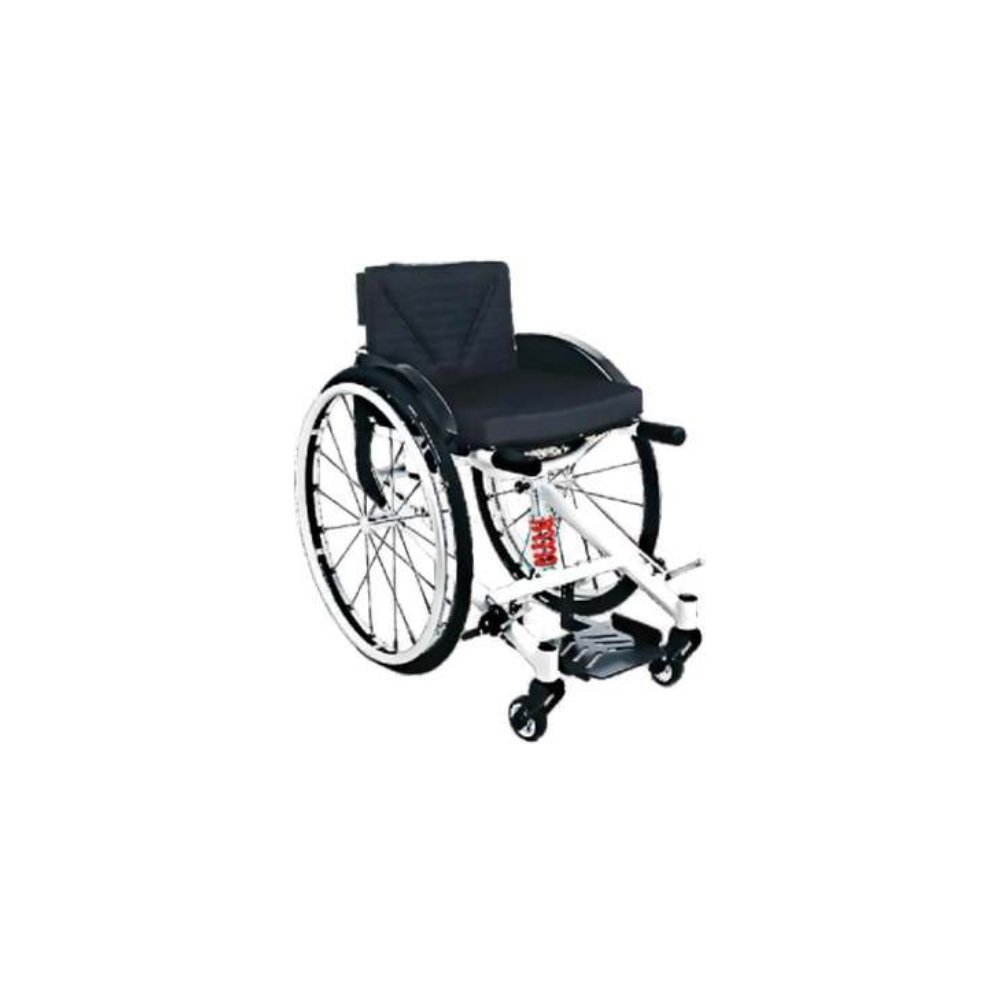

SportPro 736S Suspension Sports Wheelchair
Sports WheelchairsPDF available

SportPro 736S

SportPro 736S Suspension Sports Wheelchair

Net weight
12 kg
Seat width
380 mm
View specifications
Model
SportPro 736S
Overall width
53 cm
Seat width
38 cm
Rear wheel
60 cm
Front wheel
10 cm
Seat height
50 cm
Overall height
75 cm
Max. load
100 kg
Packing size
78 × 52 × 63 cm
Net weight
12 kg
Gross weight
14 kg
Download PDF View product →

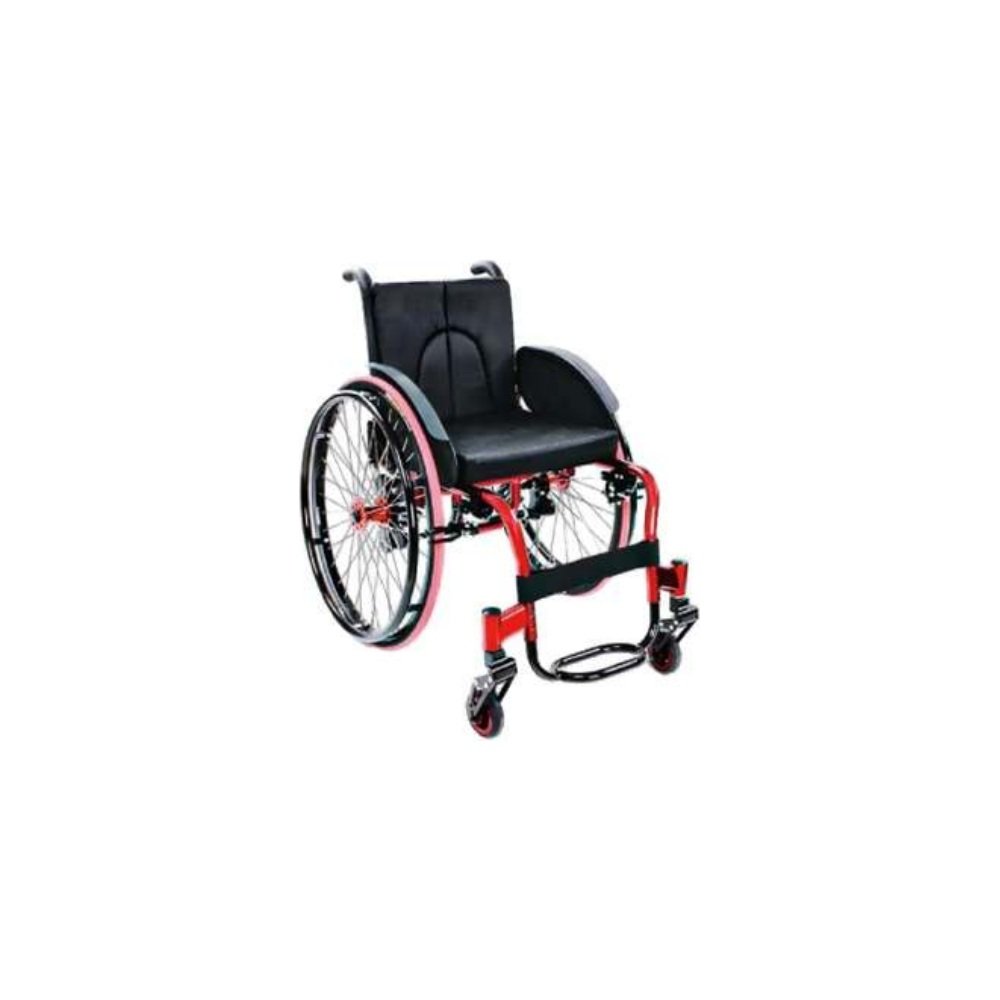

SportPro 737A Active Sports Wheelchair
Sports WheelchairsPDF available

SportPro 737A

SportPro 737A Active Sports Wheelchair

Net weight
12.6 kg
Seat width
360 mm
View specifications
Model
SportPro 737A
Overall width
59 cm
Seat width
36 cm
Rear wheel
60 cm
Front wheel
10 cm
Seat height
51 cm
Overall height
78 cm
Max. load
100 kg
Packing size
79 × 60 × 59 cm
Net weight
12.6 kg
Gross weight
15.9 kg
Download PDF View product →

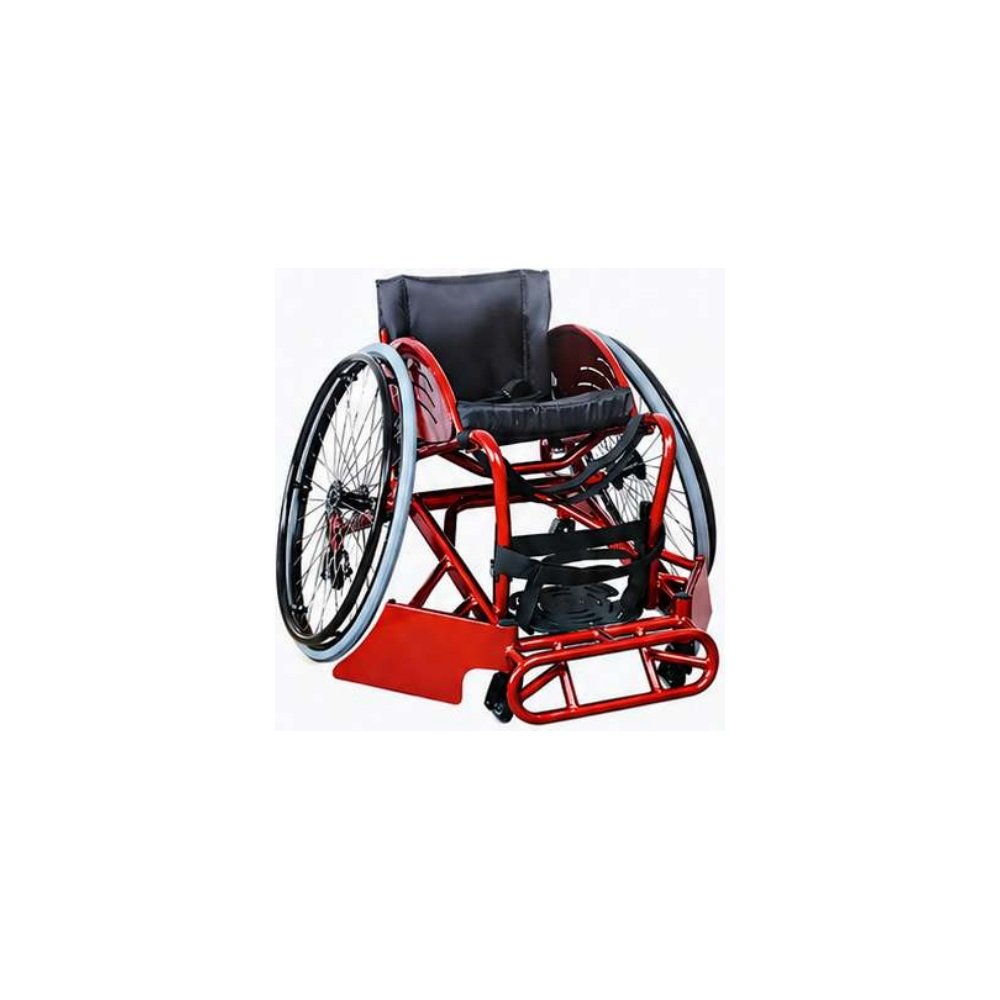

SportPro 770R Sports Wheelchair
Sports WheelchairsPDF available

SportPro 770R

SportPro 770R Sports Wheelchair

Net weight
15.5 kg
Seat width
360 mm
View specifications
Model
SportPro 770R
Overall length
88.5 cm
Seat width
36 cm
Rear wheel
65 cm
Front wheel
7.5 in
Seat height
55 cm
Overall height
72 cm
Max. load
100 kg
Packing size
87 × 84 × 72 cm
Net weight
15.5 kg
Gross weight
17.5 kg
Download PDF View product →

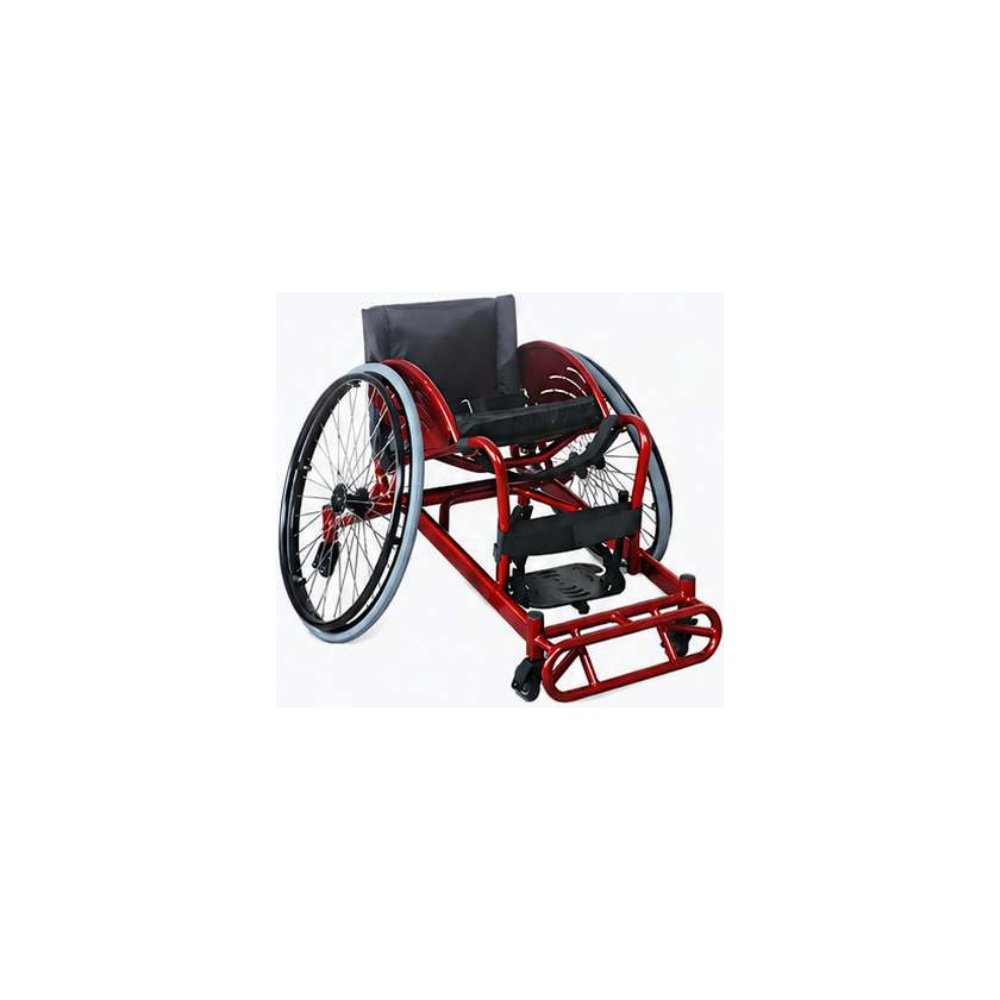

SportPro 771R Sports Wheelchair
Sports WheelchairsPDF available

SportPro 771R

SportPro 771R Sports Wheelchair

Net weight
13.8 kg
Seat width
360 mm
View specifications
Model
SportPro 771R
Overall length
88.5 cm
Seat width
36 cm
Rear wheel
65 cm
Front wheel
7.5 in
Seat height
55 cm
Overall height
72 cm
Max. load
100 kg
Packing size
96 × 82 × 72 cm
Net weight
13.8 kg
Gross weight
15.8 kg
Download PDF View product →

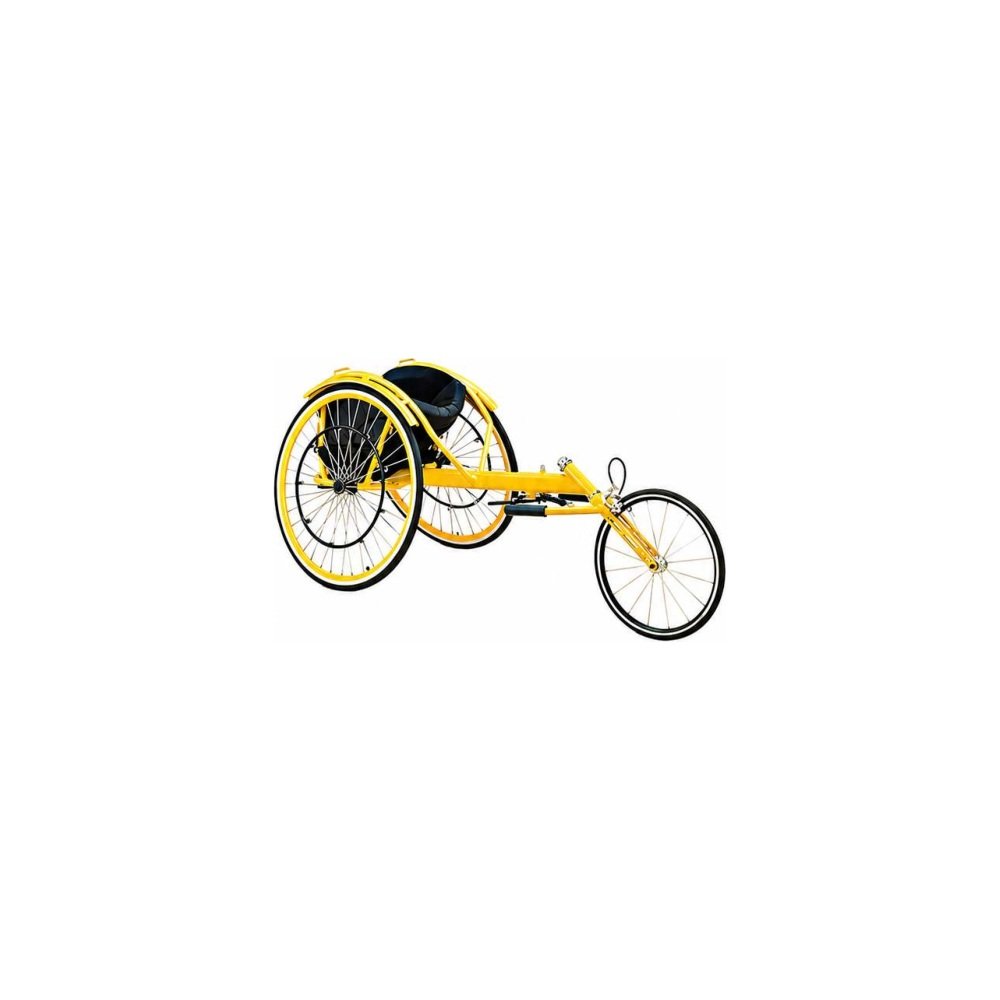

SportRide 710L-30 Sports Wheelchair
Sports WheelchairsPDF available

SportRide 710L-30

SportRide 710L-30 Sports Wheelchair

Net weight
12 kg
Seat width
300 mm
View specifications
Model
SportRide 710L-30
Overall width
63 cm
Seat width
30 cm
Overall length
65 cm
Front wheel
45 cm
Seat height
48 cm
Backrest height
68 cm
Max. load
100 kg
Packing size
165 × 56 × 70 cm
Net weight
12 kg
Gross weight
15 kg
Download PDF View product →

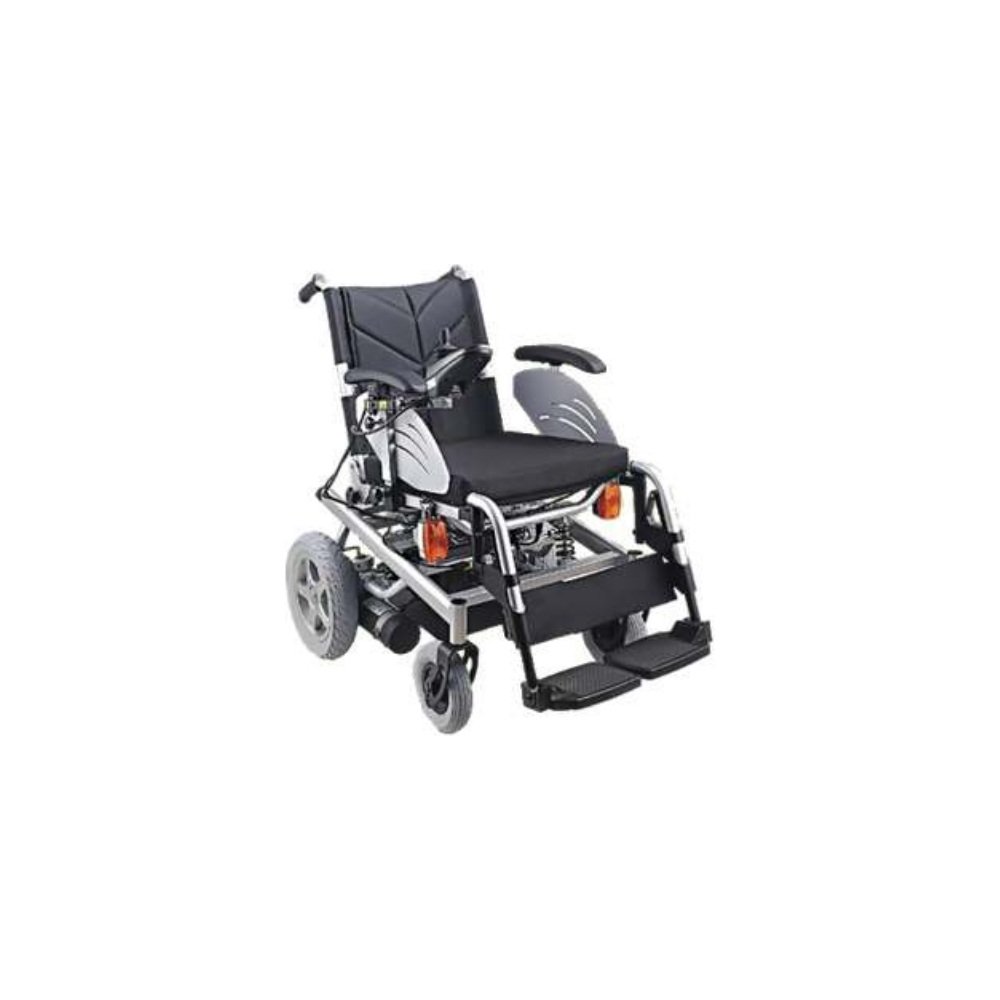

TitanDrive 310X Heavy-Duty Adjustable Power Wheelchair
Electric WheelchairsPDF available

TitanDrive 310X

TitanDrive 310X Heavy-Duty Adjustable Power Wheelchair

Net weight
63.1 kg
Seat width
460 mm
View specifications
Model
TitanDrive 310X
Overall width
64 cm
Seat width
46 cm
Seat depth
32 cm
Front wheel
20 cm
Rear wheel
55 cm
Overall height
97 cm
Range
20 km
Speed
1-7 km/h
Battery
28 Ah
Motor
200 W × 2
Charger
4 A
Climbing angle
12°
Max. load
100 kg
Packing size
77 × 66 × 69 cm
Net weight
63.1 kg
Gross weight
72.2 kg
Download PDF View product →

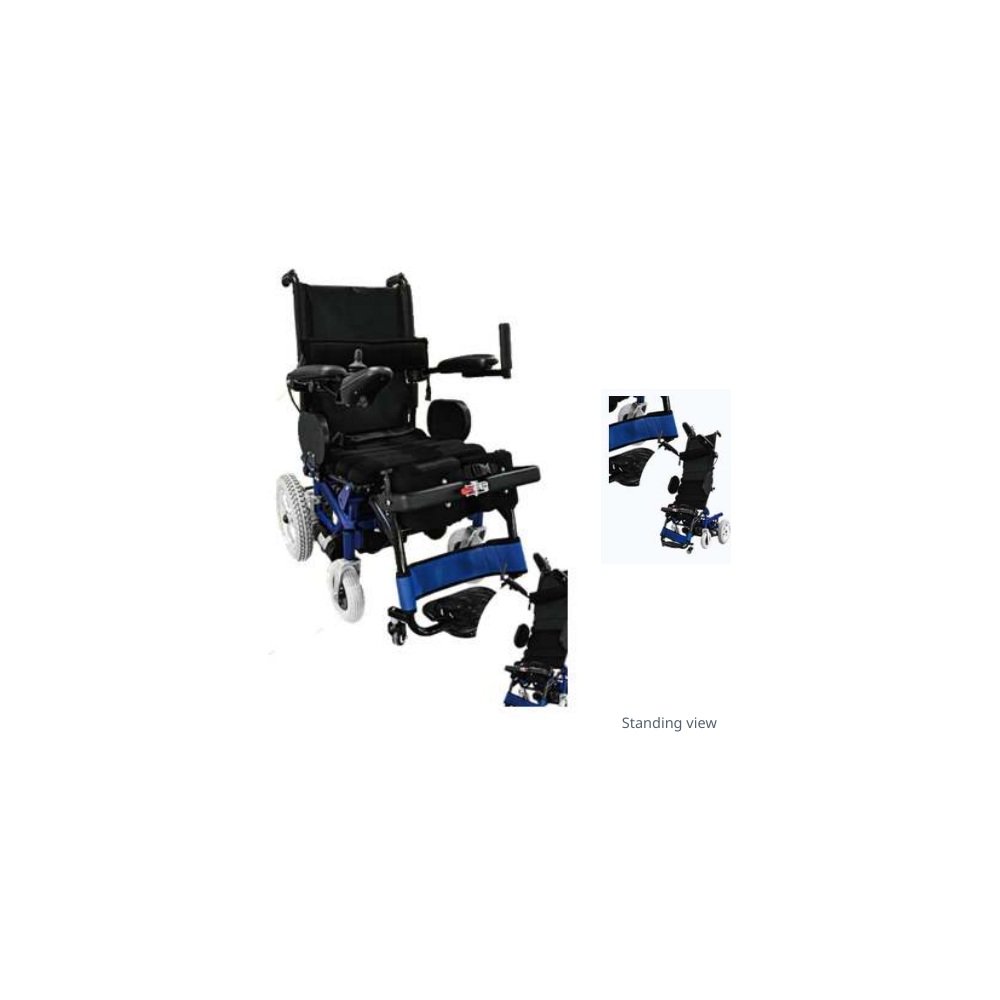

TitanDrive 318S Bionic-Seat Standing Wheelchair
Electric WheelchairsPDF available

TitanDrive 318S

TitanDrive 318S Bionic-Seat Standing Wheelchair

Net weight
71 kg
Seat width
460 mm
View specifications
Model
TitanDrive 318S
Overall width
59 cm
Seat width
46 cm
Seat depth
32 cm
Front wheel
20 cm
Rear wheel
52 cm
Overall height
96 cm
Range
20 km
Speed
1-7 km/h
Battery
28 Ah
Motor
200 W × 2
Charger
4 A
Climbing angle
12°
Max. load
75 kg
Packing size
110 × 64 × 62 cm
Net weight
71 kg
Gross weight
85 kg
Download PDF View product →

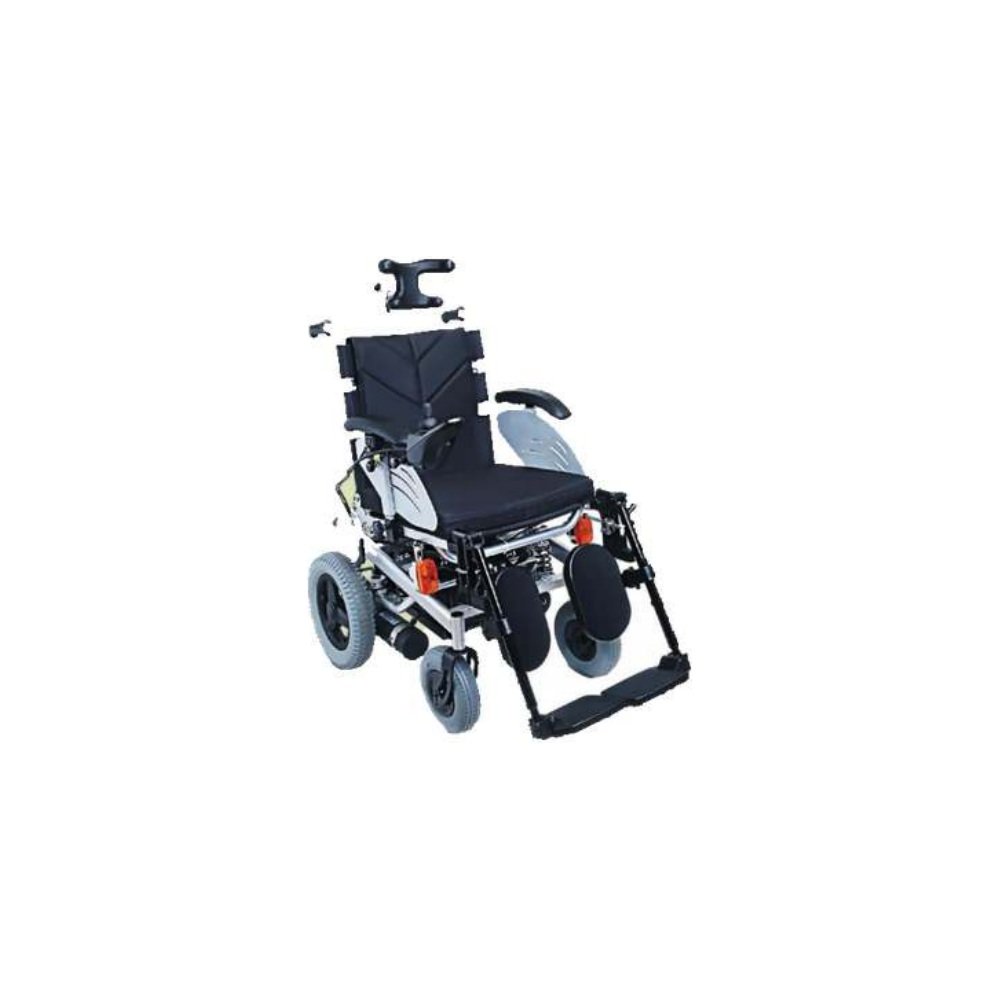

TitanDrive 320X Elevating-Footrest Electric Wheelchair
Electric WheelchairsPDF available

TitanDrive 320X

TitanDrive 320X Elevating-Footrest Electric Wheelchair

Net weight
77 kg
Seat width
430 mm
View specifications
Model
TitanDrive 320X
Overall width
67 cm
Seat width
43 cm
Seat depth
35 cm
Front wheel
23 cm
Rear wheel
58 cm
Overall height
93-126 cm
Range
25 km
Speed
1-8 km/h
Battery
40 Ah
Motor
200 W × 2
Charger
5 A
Climbing angle
12°
Max. load
125 kg
Packing size
79 × 68 × 72 cm
Net weight
77 kg
Gross weight
86 kg
Download PDF View product →

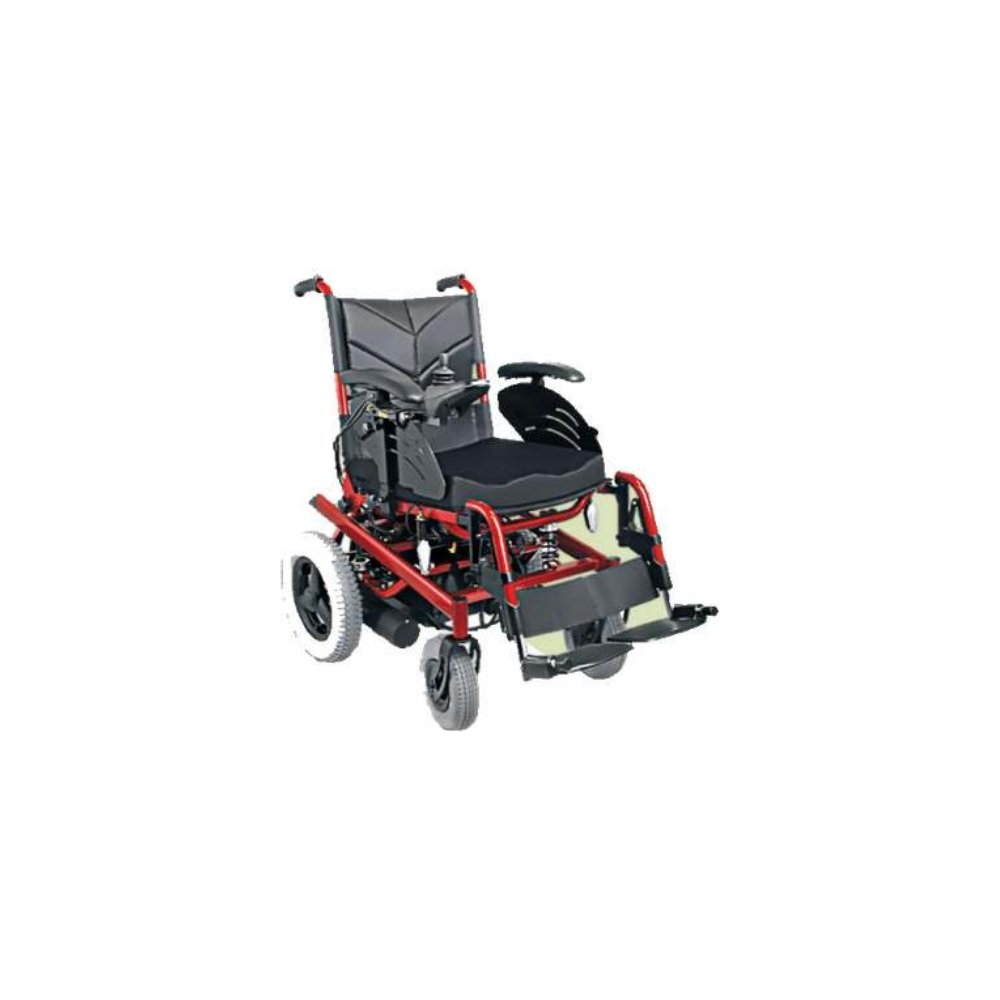

TitanDrive 330X Heavy-Duty Red-Frame Electric Wheelchair
Electric WheelchairsPDF available

TitanDrive 330X

TitanDrive 330X Heavy-Duty Red-Frame Electric Wheelchair

Net weight
75 kg
Seat width
430 mm
View specifications
Model
TitanDrive 330X
Overall width
67 cm
Seat width
43 cm
Seat depth
35 cm
Front wheel
23 cm
Rear wheel
58 cm
Overall height
95 cm
Range
25 km
Speed
1-8 km/h
Battery
40 Ah
Motor
200 W × 2
Charger
5 A
Climbing angle
12°
Max. load
125 kg
Packing size
78 × 68 × 69 cm
Net weight
75 kg
Gross weight
81 kg
Download PDF View product →

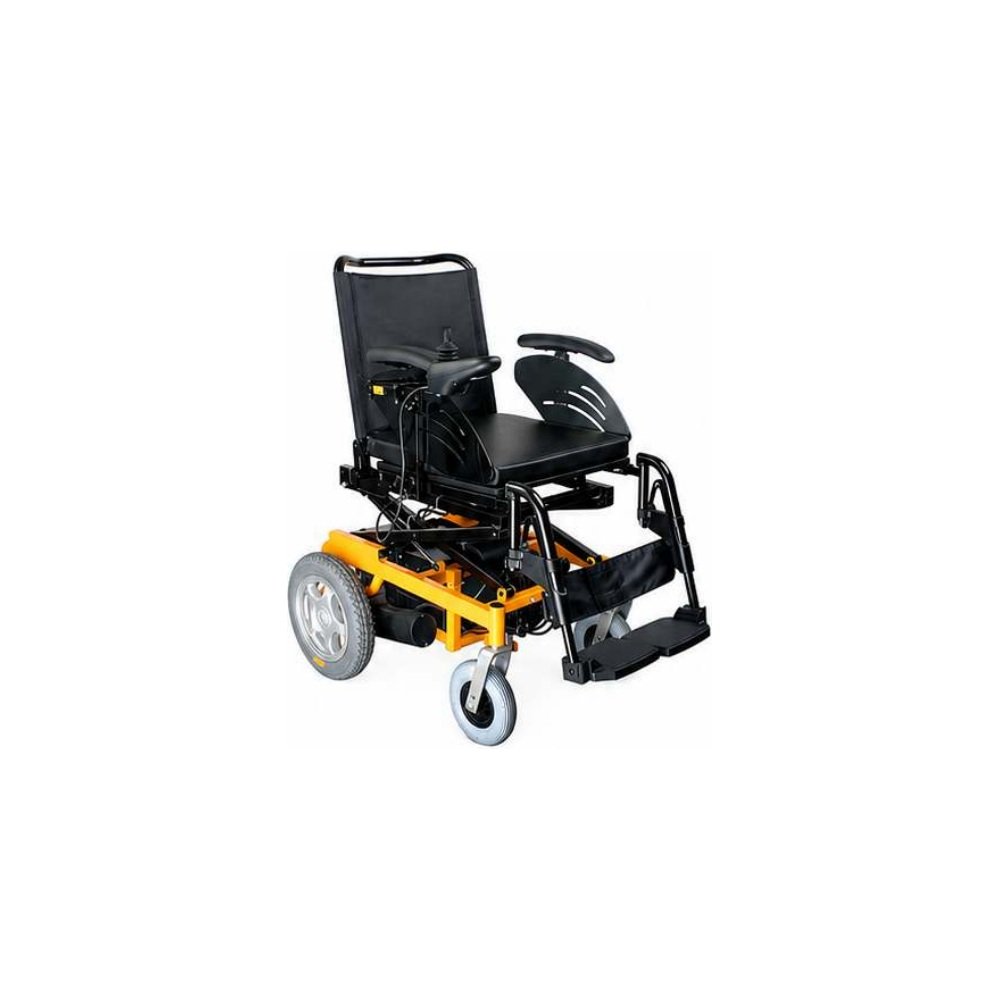

TitanDrive 340L Seat-Lift Electric Wheelchair
Electric WheelchairsPDF available

TitanDrive 340L

TitanDrive 340L Seat-Lift Electric Wheelchair

Net weight
82.8 kg
Seat width
460 mm
View specifications
Model
TitanDrive 340L
Overall length
62 cm
Seat width
46 cm
Seat depth
32 cm
Front wheel
20 cm
Rear wheel
52 cm
Overall height
92 cm
Range
25 km
Speed
1-7 km/h
Battery
40 Ah
Motor
200 W × 2
Charger
4 A
Climbing angle
12°
Max. load
100 kg
Packing size
76 × 64 × 63 cm
Net weight
82.8 kg
Gross weight
91 kg
Download PDF View product →

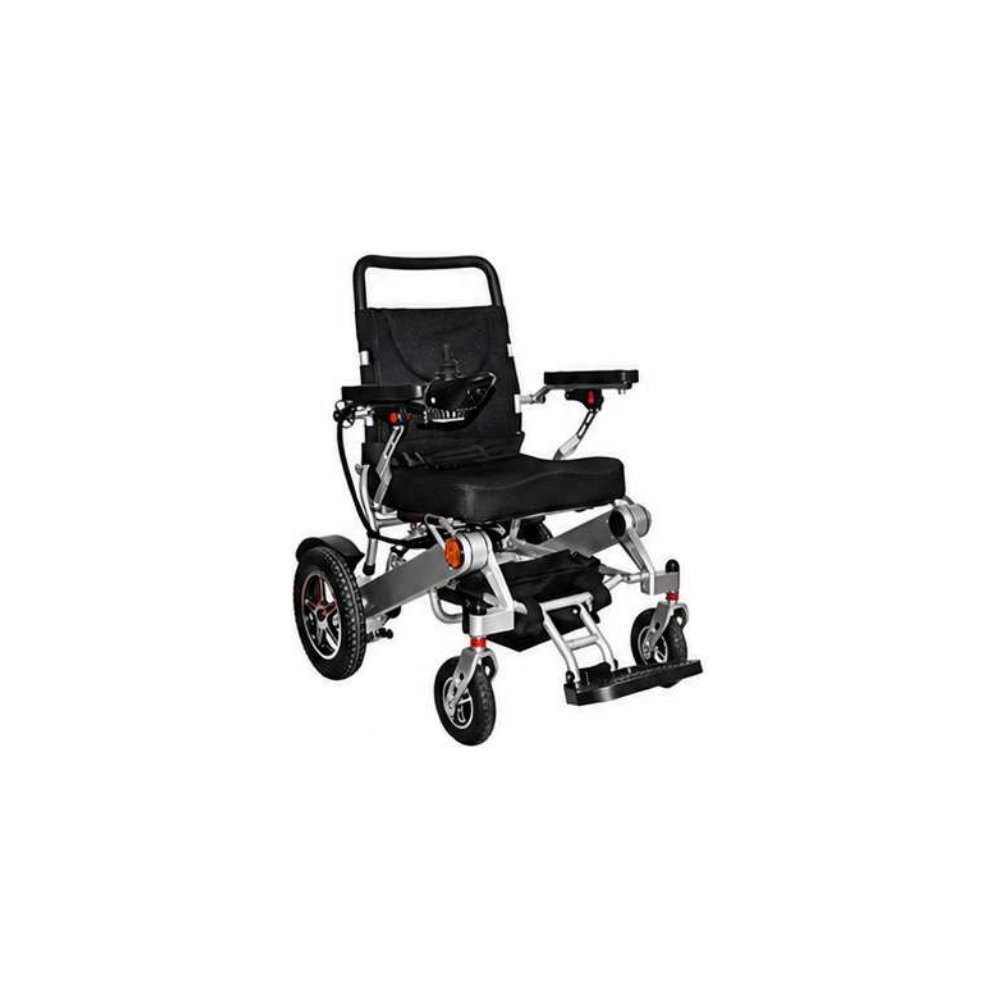

TitanDrive 350L Lightweight Electric Wheelchair
Electric WheelchairsPDF available

TitanDrive 350L

TitanDrive 350L Lightweight Electric Wheelchair

Net weight
31 kg
Seat width
410 mm
View specifications
Model
TitanDrive 350L
Seat width
41 cm
Seat depth
40 cm
Front wheel
7 in
Rear wheel
10 in
Range
10-15 km
Speed
1-6 km/h
Battery
12 Ah
Motor
250 W × 2
Charger
5 A
Climbing angle
13°
Max. load
100 kg
Packing size
68 × 45 × 84 cm
Net weight
31 kg
Gross weight
34 kg
Download PDF View product →

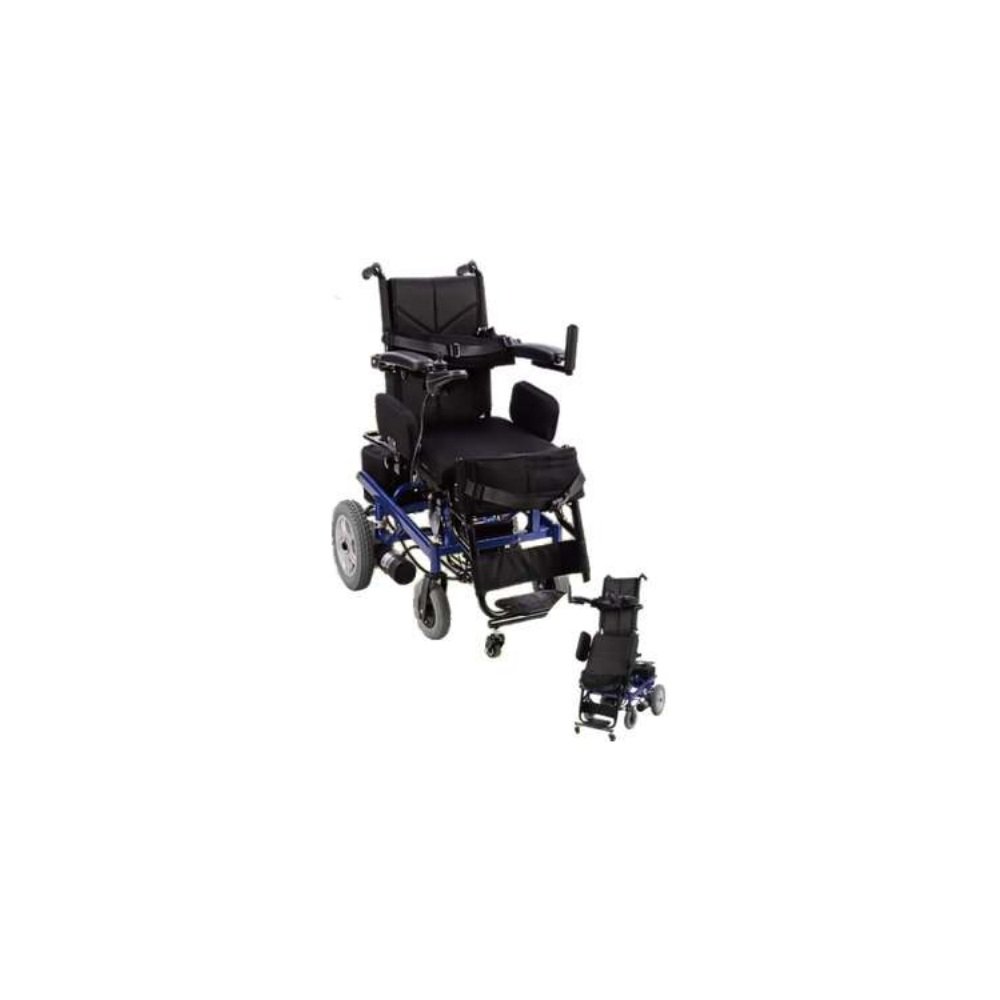

TitanDrive 410X Power Stand-Up Wheelchair
Electric WheelchairsPDF available

TitanDrive 410X

TitanDrive 410X Power Stand-Up Wheelchair

Net weight
80.4 kg
Seat width
460 mm
View specifications
Model
TitanDrive 410X
Overall width
62 cm
Seat width
46 cm
Seat depth
32 cm
Front wheel
20 cm
Rear wheel
58 cm
Overall height
107 cm
Range
25 km
Speed
1-7 km/h
Battery
40 Ah
Motor
200 W × 2
Charger
4 A
Climbing angle
12°
Max. load
100 kg
Packing size
110 × 64 × 75 cm
Net weight
80.4 kg
Gross weight
98.2 kg
Download PDF View product →

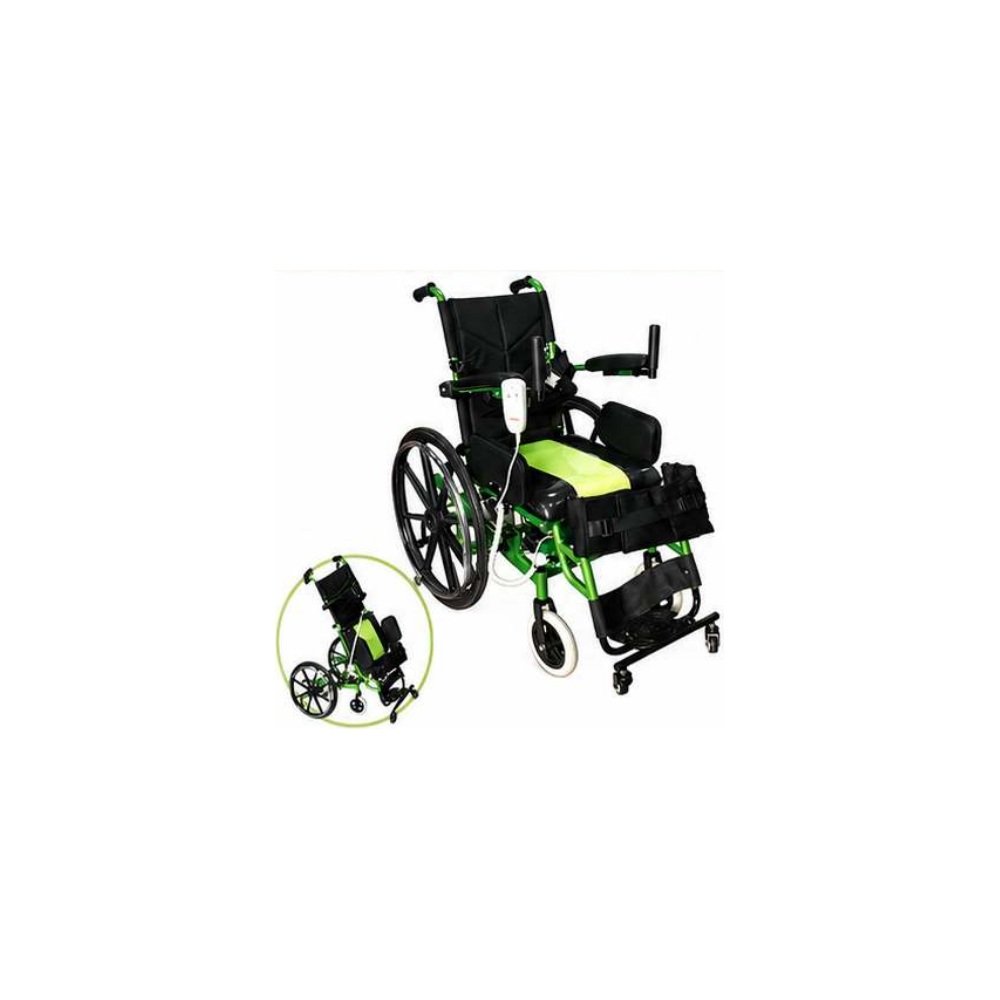

TitanDrive 420S Standing Wheelchair
Electric WheelchairsPDF available

TitanDrive 420S

TitanDrive 420S Standing Wheelchair

Net weight
34.5 kg
Seat width
460 mm
View specifications
Model
TitanDrive 420S
Overall length
65 cm
Seat width
46 cm
Seat depth
60 cm
Front wheel
20 cm
Rear wheel
58 cm
Overall height
104-138 cm
Battery
2 Ah
Max. load
100 kg
Packing size
110 × 69 × 67 cm
Net weight
34.5 kg
Gross weight
39 kg
Download PDF View product →

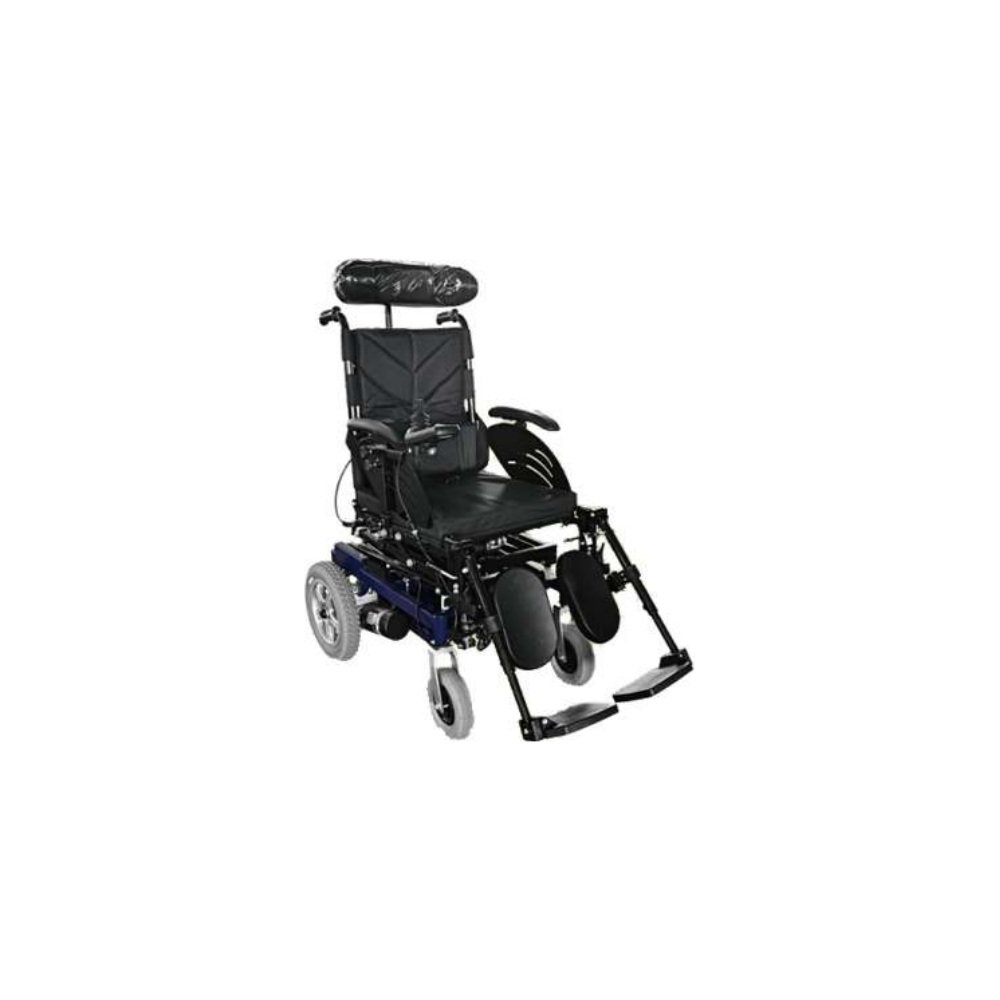

TitanDrive 430L Electrical Seat-Lift Wheelchair
Electric WheelchairsPDF available

TitanDrive 430L

TitanDrive 430L Electrical Seat-Lift Wheelchair

Net weight
91.7 kg
Seat width
460 mm
View specifications
Model
TitanDrive 430L
Overall width
59 cm
Seat width
46 cm
Seat depth
32 cm
Front wheel
20 cm
Rear wheel
55 cm
Overall height
120-127 cm
Range
25 km
Speed
1-7 km/h
Battery
40 Ah
Motor
200 W × 2
Charger
4 A
Climbing angle
12°
Max. load
100 kg
Packing size
85 × 65 × 75 cm
Net weight
91.7 kg
Gross weight
98.5 kg
Download PDF View product →

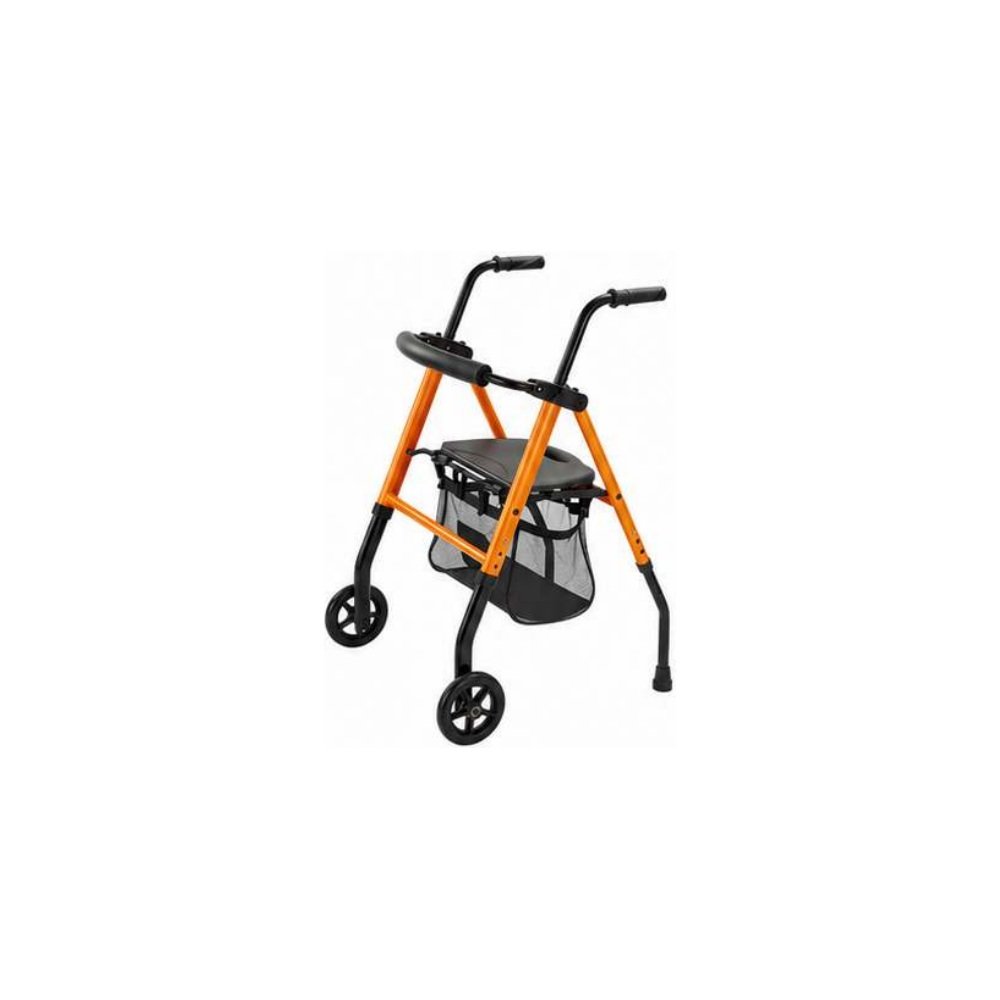

WalkAssist 810A Lightweight Rollator
Walkers & Mobility AidsPDF available

WalkAssist 810A

WalkAssist 810A Lightweight Rollator

Net weight
5.7 kg
View specifications
Model
WalkAssist 810A
Net weight
5.7 kg
Weight capacity
136 kg
Overall length
600-627 mm
Overall width
580 mm
Overall height
791-930 mm
Seat height
468-513 mm
Packing size
535 × 145 × 485 mm
Download PDF View product →

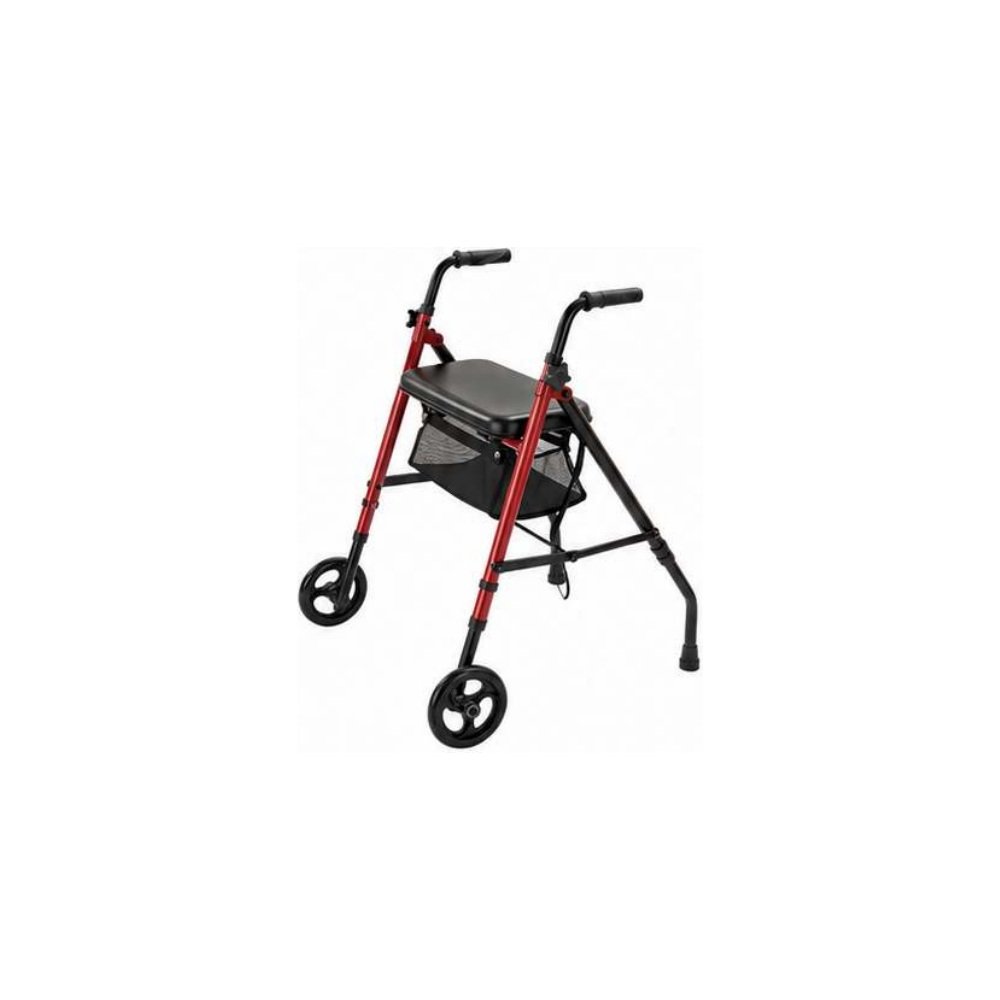

WalkAssist 811S Lightweight Rollator
Walkers & Mobility AidsPDF available

WalkAssist 811S

WalkAssist 811S Lightweight Rollator

Net weight
5.7 kg
View specifications
Model
WalkAssist 811S
Net weight
5.7 kg
Weight capacity
136 kg
Overall length
586 mm
Overall width
604 mm
Overall height
775-945 mm
Seat height
547 mm
Packing size
560 × 530 × 200 mm (2 pcs/ctn)
Download PDF View product →

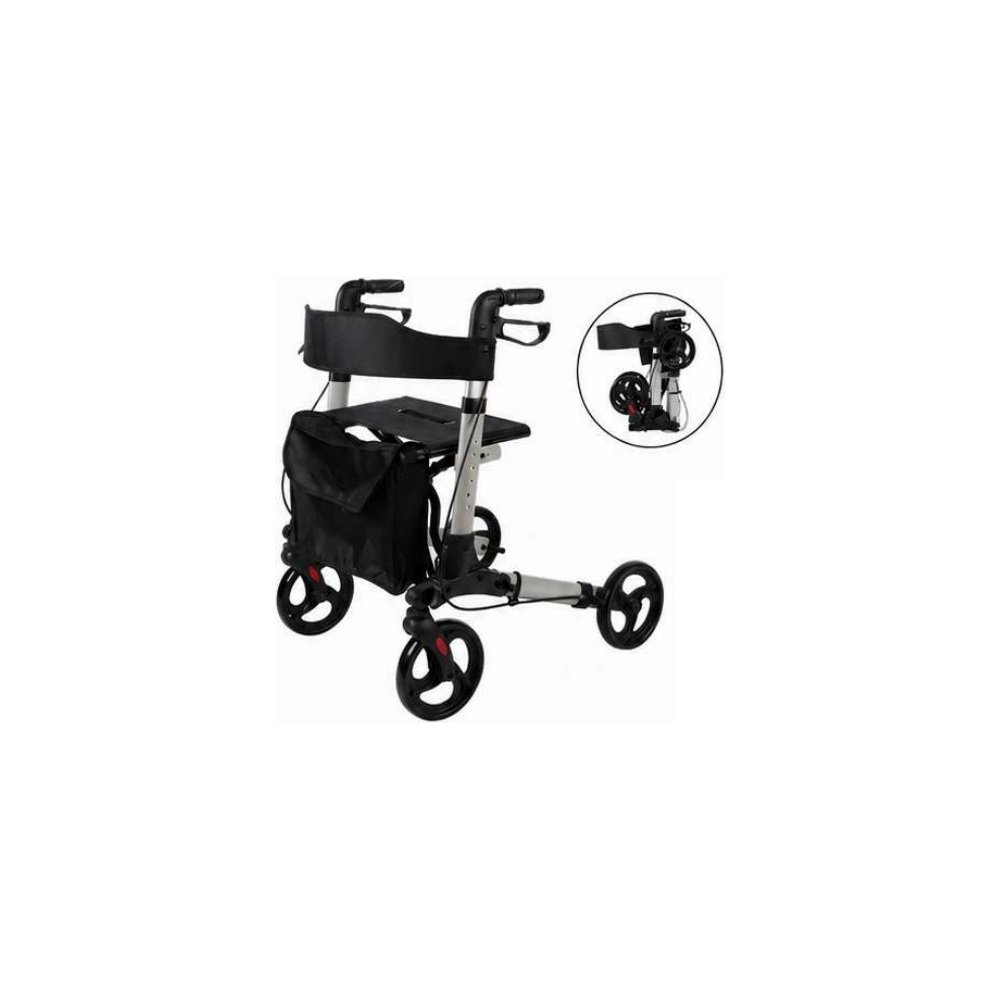

WalkAssist 920R Premium Medical Rollator
Walkers & Mobility AidsPDF available

WalkAssist 920R

WalkAssist 920R Premium Medical Rollator

Net weight
7.9 kg
Seat width
460 mm
View specifications
Model
WalkAssist 920R
Seat width
46 cm
Seat depth
25 cm
Front wheel
8 in
Rear wheel
8 in
Net weight
7.9 kg
Weight capacity
136 kg
Overall length
67.5 ± 1.0 cm
Overall width
66.0 ± 1.0 cm
Overall height
80.0-92.5 ± 1.0 cm
Seat height
54.0 ± 1.0 cm
Packing size
37.5 × 30.0 × 67.0 cm
Download PDF View product →

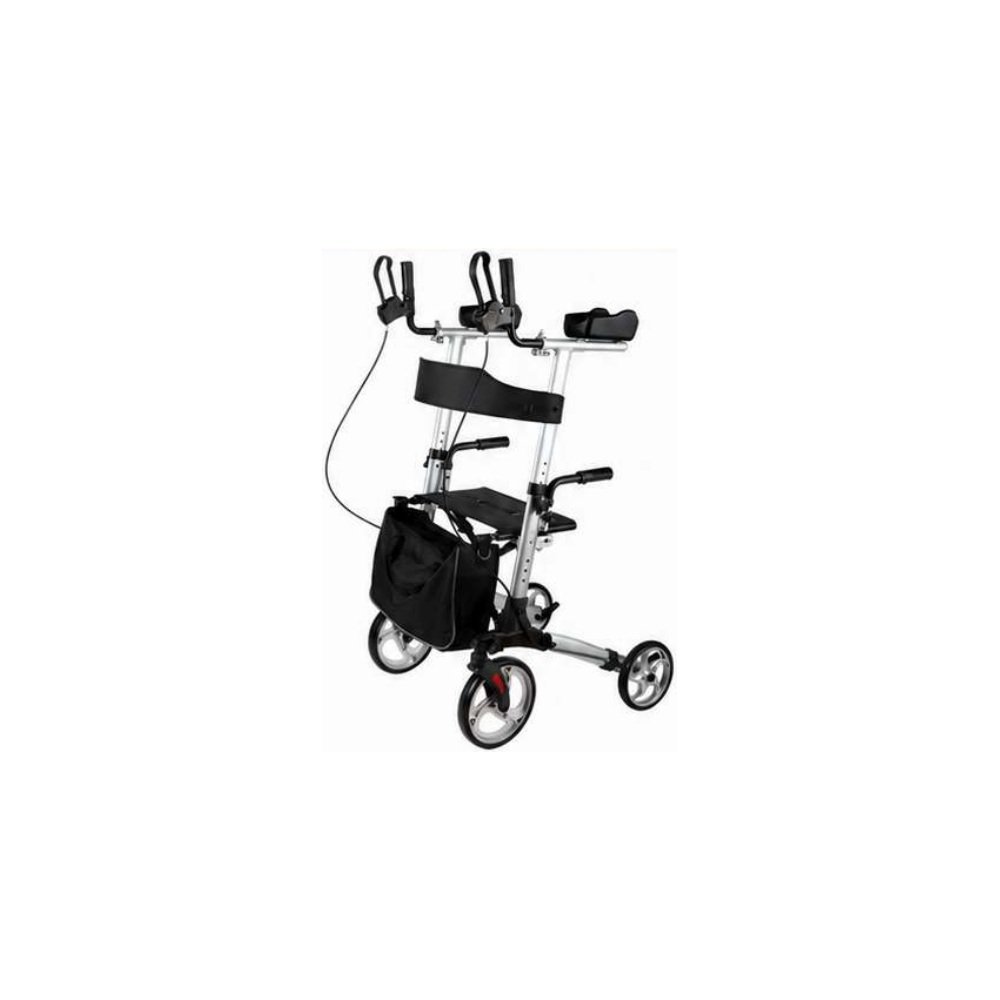

WalkAssist 921U Premium Medical Rollator
Walkers & Mobility AidsPDF available

WalkAssist 921U

WalkAssist 921U Premium Medical Rollator

Net weight
11 kg
Seat width
460 mm
View specifications
Model
WalkAssist 921U
Seat width
46 cm
Seat depth
27 cm
Front wheel
10 in
Rear wheel
8 in
Net weight
11 kg
Weight capacity
136 kg
Overall length
71.5 ± 1.0 cm
Overall width
63.5 ± 1.0 cm
Overall height
115.7-128.0 ± 1.0 cm
Seat height
57.0 ± 1.0 cm
Handle height
71.5 ± 1.0 cm
Packing size
67.0 × 38.0 × 40.0 cm
Download PDF View product →

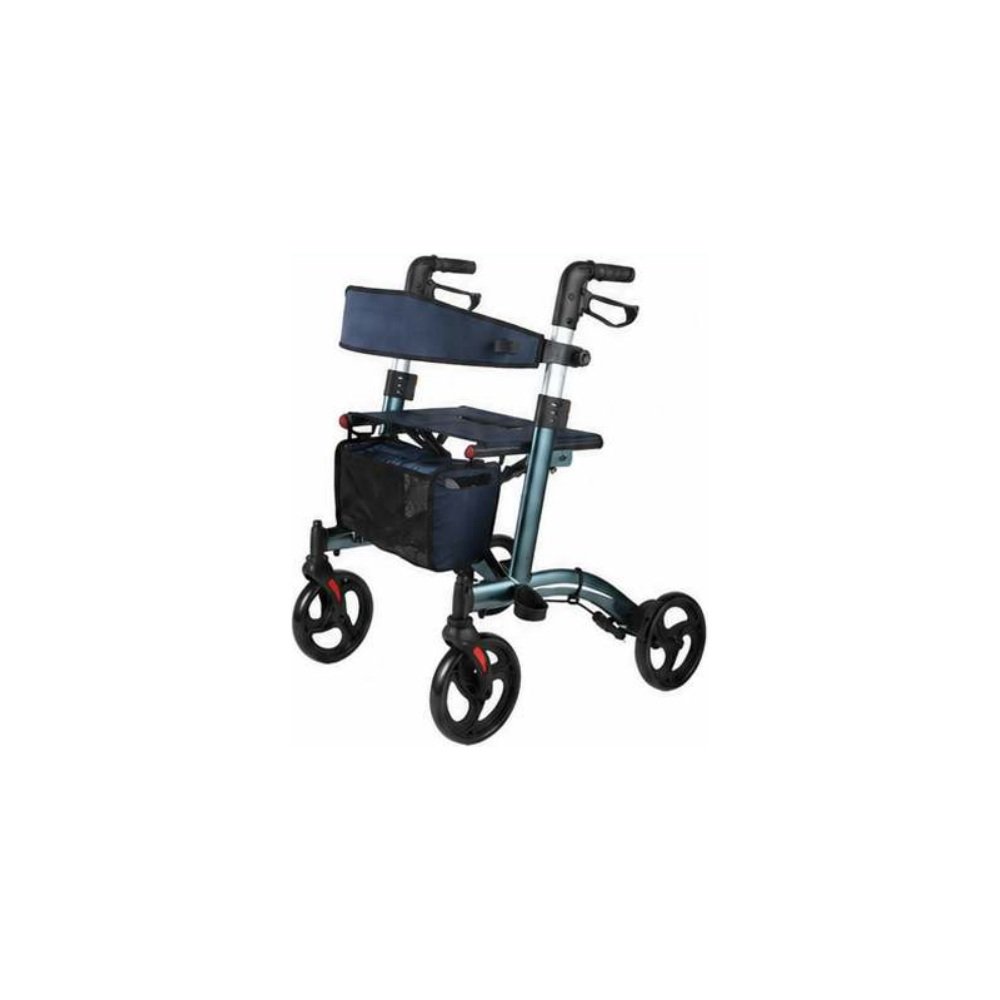

WalkAssist 925A Rollator
Walkers & Mobility AidsPDF available

WalkAssist 925A

WalkAssist 925A Rollator

Net weight
7.4 kg
View specifications
Model
WalkAssist 925A
Net weight
7.4 kg
Weight capacity
136 kg
Wheel size
8 in
Material
Aluminum
Overall length
690 ± 10 mm
Overall width
610 ± 10 mm
Overall height
815-945 ± 10 mm
Seat height
550 ± 10 mm
Packing size
695 × 240 × 790 mm
Download PDF View product →

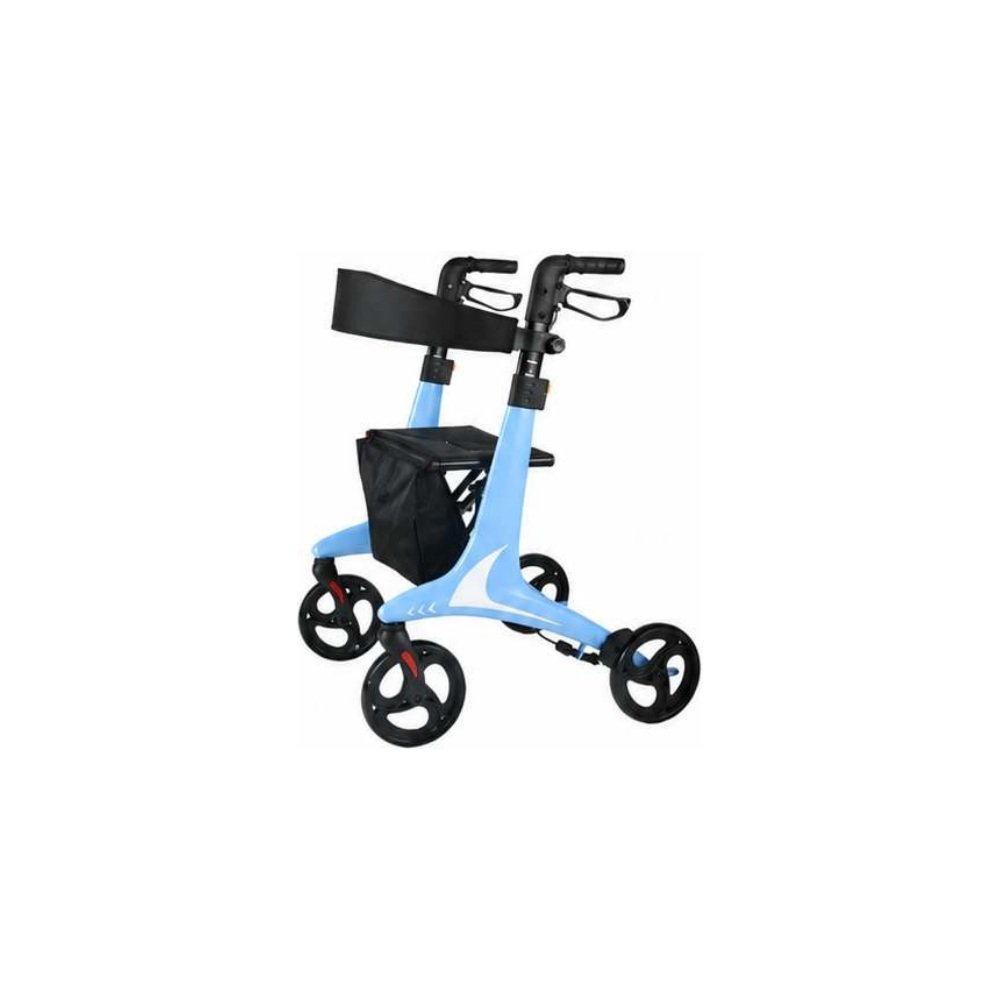

WalkAssist 929C Rollator
Walkers & Mobility AidsPDF available

WalkAssist 929C

WalkAssist 929C Rollator

Net weight
6.9 kg
View specifications
Model
WalkAssist 929C
Net weight
6.9 kg
Weight capacity
136 kg
Wheel size
8 in
Material
Carbon fiber
Overall length
700 ± 10 mm
Overall width
630 ± 10 mm
Overall height
893-1017 ± 10 mm
Seat height
540 ± 10 mm
Packing size
710 × 270 × 865 mm
Download PDF View product →
滚动至顶部
